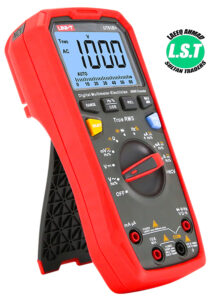

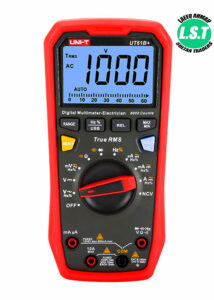

UNI-T UT61B+ True RMS Digital Multimeter
The UNI-T UT61B+ is a professional-grade True RMS digital multimeter designed for accurate AC/DC measurements. It features a 6000-count display, wide measurement ranges (voltage, current, resistance, capacitance, frequency, temperature), USB data logging, and safety ratings of CAT III 1000V / CAT IV 600V. Ideal for electronics, electrical maintenance, and field service work.
₨11,000.00
10
People watching this product now!
Payment Methods:
Description
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 600mV / 6V / 60V / 600V / 1000V | ±(0.5% + 2 digits) |
| AC Voltage | 600mV / 6V / 60V / 600V / 1000V | ±(0.8% + 3 digits) |
| DC Current | 600µA / 6000µA / 60mA / 600mA / 10A | ±(0.8% + 3 digits) |
| AC Current | 600µA / 6000µA / 60mA / 600mA / 10A | ±(1.0% + 3 digits) |
| Resistance | 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ | ±(0.8% + 2 digits) |
| Capacitance | 60nF to 60mF | ±(3.5% + 5 digits) |
| Frequency | 10Hz to 10MHz | ±(0.1% + 4 digits) |
| Duty Cycle | 0.1% to 99.9% | ±(1.2% + 2 digits) |
| Temperature | -40°C to 1000°C | ±(1.0% + 3 digits) |
📺 Display
-
Count: 6000-count LCD
-
Bar Graph: 31-segment analog bar
-
Backlight: Yes
-
Update Rate: 3 times/second (digital), 30 times/second (bar graph)
