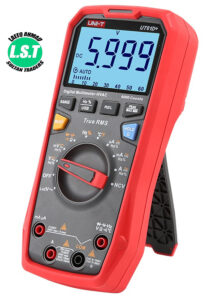

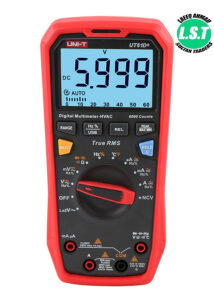

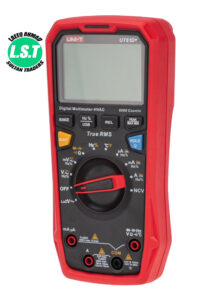

UNI-T UT61D+ True RMS Digital Multimeter
The UNI-T UT61D+ is a True RMS digital multimeter designed for professionals and advanced users. It offers high-accuracy measurements for voltage, current, resistance, capacitance, frequency, and temperature. Key features include a 6000-count display, USB connectivity, non-contact voltage detection, and safety ratings of CAT III 1000V / CAT IV 600V, making it ideal for a wide range of electrical and electronic applications.
₨13,500.00
Payment Methods:
Description
Technical Specifications
-
Display Count: 6000
-
Voltage Measurement:
-
DC: Up to 1000V ±(0.5% + 3)
-
AC: Up to 1000V ±(1% + 3)
-
-
Current Measurement:
-
DC: Up to 20A ±(1% + 2)
-
AC: Up to 20A ±(1.2% + 5)
-
-
Resistance: Up to 60MΩ ±(1% + 2)
-
Capacitance: Up to 60mF ±(3% + 5)
-
Frequency: Up to 10MHz ±(0.1% + 4)
-
Duty Cycle: 0.1% to 99.9% ±(2% + 5)
-
Temperature Range:
-
Celsius: -40°C to 1000°C ±(1% + 3)
-
Fahrenheit: -40°F to 1832°F ±(1% + 6)
-
-
Bandwidth: 40Hz to 1kHz
-
Safety Ratings: CAT III 1000V / CAT IV 600V
Features
-
True RMS measurement for accurate readings of both sinusoidal and non-sinusoidal signals
-
Auto and manual ranging capabilities
-
Max/Min/Relative modes
-
Data hold and backlight functions
-
USB interface for data transfer
-
Diode and continuity testing with audible buzzer
-
Non-contact voltage (NCV) detection with audible and visual alarms
-
Low impedance AC voltage (LoZ ACV) measurement
-
Peak hold function to capture transient values
-
31-segment analog bar graph for trend visualization
-
Auto power-off to conserve battery life
-
Input protection to safeguard the device and user
-
