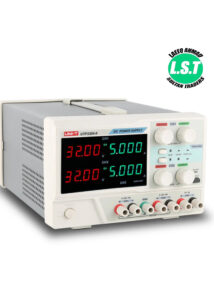

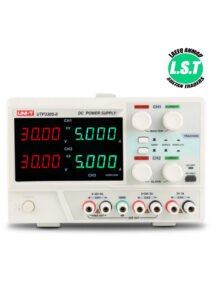

The UNI-T UTP3305-II Triple-Channel DC power supply
- Channels: 3
- Type: linear DC power supply
- TOTAL POWER : 335W
- OUTPUT VOLTAGE: 32V
- OUTPUT CURRENT: 5A
- RESOLUTION: 10mV/1mA
- SETTING ACCURACY: Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA
₨56,000.00
13
People watching this product now!
Payment Methods:
Description
🔧 Electrical Specifications
| Parameter | CH1 & CH2 (Adjustable) | CH3 (Fixed) |
|---|---|---|
| Output Voltage | 0 – 32 V | 5 V |
| Output Current | 0 – 5 A | 3 A |
| Output Power | Up to 160 W per channel | 15 W |
| Total Output Power | 335 W (Max Total Combined) | — |
| Voltage Resolution | 10 mV | — |
| Current Resolution | 1 mA | — |
📉 Load Regulation
| Mode | CV (Voltage) | CC (Current) |
|---|---|---|
| CH1 & CH2 | ≤ 0.01% + 3 mV | ≤ 0.2% + 3 mA |
| CH3 | ≤ 5% + 50 mV | ≤ 5% + 50 mA |
📈 Line Regulation
| Mode | CV | CC |
|---|---|---|
| CH1 & CH2 | ≤ 0.01% + 3 mV | ≤ 0.2% + 3 mA |
📊 Ripple & Noise
| Parameter | Value |
|---|---|
| Voltage (CV) | ≤ 1 mVrms |
| Current (CC) | ≤ 3 mArms |
⚙️ Display & Control
-
Display Type: 4-digit LED for each channel (voltage & current)
-
Resolution: High resolution for fine control
-
Modes: Independent, Series, and Parallel Tracking Modes
-
Protection: OVP, OCP, OTP, reverse polarity

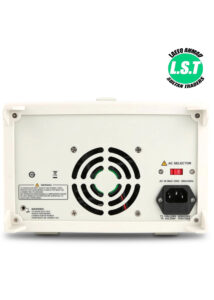

🌡️ Cooling System
-
Type: Intelligent temperature-controlled fan
-
Noise Level: Quiet operation with fan activating only when needed
📐 Mechanical & Miscellaneous
| Parameter | Value |
|---|---|
| Dimensions (L×W×H) | 319 × 146 × 226 mm |
| Weight | ~10.5 kg |
| Input Voltage | 110V / 220V AC selectable |
🧰 Standard Features
-
Series and parallel operation support
-
Voltage and current limiting
-
Fine/coarse control knobs for both V and A
-
Banana plug terminals for output
-
Durable metal enclosure
