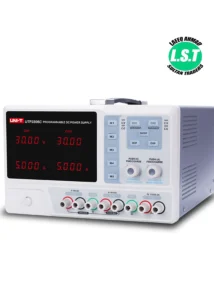

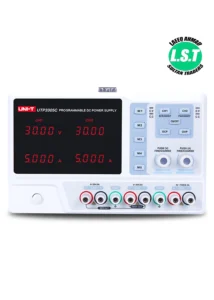

UNI-T UTP3305C Programmable DC Power Supply
-
Channels: 3 (2 independent channels and 1 fixed output)
-
Output Voltage:
-
CH1/CH2: 0–30V
-
CH3: 5V fixed
-
-
Output Current:
-
CH1/CH2: 0–5A
-
CH3: 3A
-
-
Total Power: 315W
₨67,000.00
16
People watching this product now!
Payment Methods:
Description
🔧 Technical Specifications
| Parameter | Details |
|---|---|
| Model | UNI-T UTP3305C |
| Output Channels | 3 channels (CH1, CH2 adjustable; CH3 fixed) |
| Output Voltage | CH1/CH2: 0–30V; CH3: 5V (fixed) |
| Output Current | CH1/CH2: 0–5A; CH3: 3A |
| Output Power | Up to 315W total |
| Voltage Accuracy | <0.5% + 20mV |
| Current Accuracy | <0.5% + 10mA |
| Voltage Ripple | ≤2mVrms (20Hz–20MHz) |
| Current Ripple | ≤3mArms |
| Load Regulation | Voltage: <0.01% + 5mV; Current: <0.1% + 10mA |
| Line Regulation | Voltage: <0.01% + 3mV; Current: <0.1% + 5mA |
| Resolution | Voltage: 10mV; Current: 1mA |
| Display | 4-digit LED display for voltage & current |
| Interfaces | USB Device, RS-232 (optional LAN) |
| Memory | 5 groups of voltage/current data memory recall |
| Protection Functions | Over-voltage, over-current, over-temperature |
| Power Supply Input | AC 100V–230V ±10%, 50/60Hz |
| Cooling | Intelligent fan cooling |
| Size | 260mm × 176mm × 317mm |
| Weight | Approx. 9.1 kg |
✅ Key Features
-
Independent dual adjustable outputs + one fixed output
-
Series, parallel, and independent modes supported
-
Software calibration
-
Keyboard lock function
-
Memory function (stores settings)
-
Compact design, ideal for lab benches
