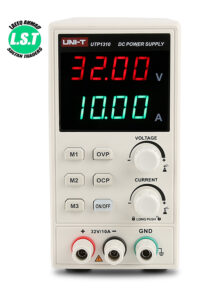

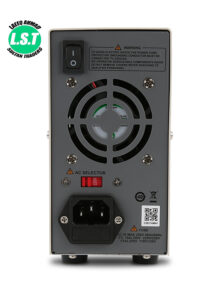

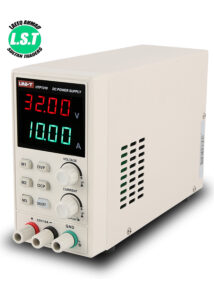

UNI-T UTP1310 32V 10A DC Power Supply
₨23,500.00
Out of stock
Out of stock
16
People watching this product now!
Payment Methods:
Description
🔧 Electrical Specifications
| Feature | Specification |
|---|---|
| Output Voltage | 0 – 32V DC |
| Output Current | 0 – 10A |
| Output Power | 320W |
| Voltage Resolution | 10 mV |
| Current Resolution | 1 mA |
| Voltage Setting Accuracy | <0.01% + 5 mV |
| Current Setting Accuracy | ≤0.2% + 3 mA |
| Ripple & Noise | ≤1 mVrms (Voltage), ≤3 mArms (Current) |
| Load Regulation | ≤0.1% + 5 mV / ≤0.1% + 3 mA |
| Line Regulation | ≤0.01% + 3 mV / ≤0.01% + 3 mA |
| Display | Dual 4-digit LED (Voltage & Current) |
| Display Accuracy | Voltage: ±(0.5% + 2 digits), Current: ±(0.5% + 2 digits) |
🛡️ Protection & Safety
| Protection Type | Description |
|---|---|
| Over Voltage Protection (OVP) | Yes |
| Over Current Protection (OCP) | Yes |
| Over Temperature Protection (OTP) | Yes |
| Short Circuit Protection | Yes (automatic recovery) |
⚙️ Mechanical Specifications
| Feature | Specification |
|---|---|
| Power Supply Type | Switching (SMPS) |
| Input Voltage | AC 110V / 220V ±10%, 50Hz/60Hz |
| Cooling | Temperature-controlled fan |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 70°C |
| Dimensions | 80 × 150 × 230 mm |
| Weight | Approx. 2.5 kg |
