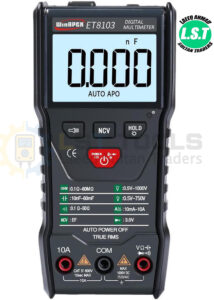

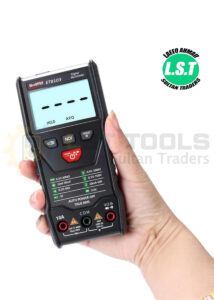

Winapex ET8103 Auto-Ranging 6000 Count True RMS Digital Multimeter

🔧 Technical Specifications

General

• Display: LCD, 6000‑count (3 5/6 digits)

• Size & Weight: Approx. 139 × 63 × 28.5 mm; ~199 g (with batteries)

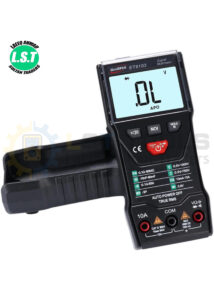

• Housing: Anti‑shock PVC casing with integrated stand/backkick

• Power Supply: 2×AAA batteries; auto‑power‑off after ~15 min; low battery indicator
  Voltage

• DC Voltage: 6 V / 60 V / 600 V / 800 V; accuracy 0.5 % + 4 digits

• AC Voltage: 6 V / 60 V / 600 V / 750 V; accuracy 0.8 % + 3 digits; True RMS capability

Current

• DC Current: 6 A / 10 A; accuracy 0.8 % + 8 digits

• AC Current: 6 A / 10 A; accuracy 1.0 % + 8 digits; True RMS

Resistance & Continuity

• Resistance Ranges: 600 Ω – 60 MΩ (scaled across 600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ/60 MΩ); accuracy 0.8 % + 5

• Continuity Test: Audible buzzer (freWinapex ET8103 6000-Countquency 40 Hz–1 kHz typical) Capacitance

• Ranges: 60 nF to 60 mF (including some up to 30 mF for reference); accuracy varies: 2.5 %+60 to 10 %+5 depending on range

Additional Features

• Auto‑range “smart” mode: Automatically selects measurement type—no manual dial

• NCV detection: Non‑contact live‑wire detection

• Flashlight & Backlight: Built-in LED worklight and backlit LCD
  Data Hold: Yes

• Overload Protection: 1000 V DC / 750 V AC walmart

Operating Conditions

• Temperature: Recommended 18–28 °C; humidity up to 75 % RH
