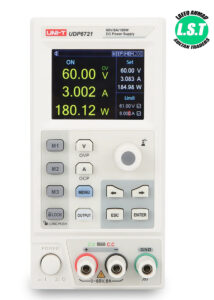

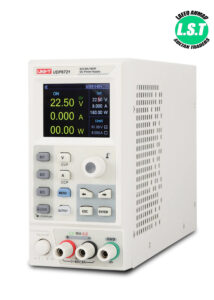

UNI-T UDP6721 High-Performance Single Channel DC Power Supply
-
Output Voltage: 0–60 V DC
-
Output Current: 0–8 A
-
Maximum Power: 180 W
-
Resolution: 10 mV (voltage), 1 mA (current)
-
Accuracy: Voltage: ≤0.05% + 10 mV; Current: ≤0.3% + 5 mA
₨61,500.00
Payment Methods:

Description
🔧 Technical Specifications
Feature | Specification |
---|---|
Model | UDP6721 |
Channels | 1 (Single Output) |
Output Voltage Range | 0–60 V DC |
Output Current Range | 0–8 A |
Maximum Power Output | 180 W |
Voltage Resolution | 10 mV |
Current Resolution | 1 mA |
Programming Accuracy | Voltage: ≤0.05% + 10 mV Current: ≤0.3% + 5 mA |
Read-back Accuracy | Voltage: ≤0.05% + 10 mV Current: ≤0.3% + 5 mA |
Ripple & Noise | Voltage: <2.0 mV RMS Current: <5.0 mA RMS |
Load Regulation | Voltage: <0.01% + 5 mV Current: <0.01% + 5 mA |
Power Supply Regulation | Voltage: <0.01% + 5 mV Current: <0.1% + 5 mA |
Display | 2.8″ Full-Color TFT LCD |
Dimensions (W×H×D) | 87 × 174 × 255 mm |
Weight | 2.5 kg |

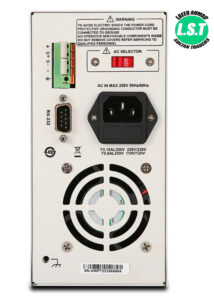

Interfaces | RS-232 Serial Interface Remote Compensation (SCPI Protocol) |
Protection Features | Overvoltage Protection (OVP) Overcurrent Protection (OCP) Overtemperature Protection (OTP) |
Programmable Features | List Mode (48 editable points) Delayer Mode 600 memory presets (3 × 200 groups) |
Cooling | Intelligent Fan Regulation |
Certifications | CE, RoHS, UKCA |
💡 Key Features
-
High Resolution: Offers precise control with 10 mV voltage and 1 mA current resolution.
-
Remote Compensation: Ensures accurate voltage readings at the load end by compensating for voltage drops in the cables.
-
Programmable Functions: Supports list and delayer functions, allowing for automated testing sequences with up to 48 editable points.
-
Comprehensive Protection: Equipped with overvoltage, overcurrent, and overtemperature protections to safeguard both the power supply and connected devices.
-
Compact Design: Its small footprint (87 × 174 × 255 mm) makes it suitable for limited workspace environments.
🛠️ Applications
The UNI-T UDP6721 is ideal for:
-
Prototyping and Development: Providing stable and adjustable power for circuit design and testing.
-
Battery Charging: Offering controlled charging profiles for various battery types.
-
Component Testing: Supplying precise voltage and current for testing electronic components.
-
Circuit Debugging: Assisting in diagnosing and troubleshooting electronic circuits.
-
Burn-in Testing: Ensuring the reliability of electronic devices under prolonged operation.
