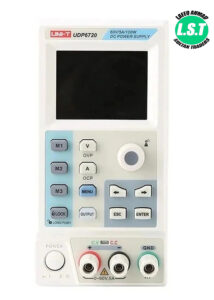

UNI-T UDP6720 Programmable Single Channel DC Power Supply
-
Output Voltage: 0–60 V
-
Output Current: 0–5 A
-
Maximum Power Output: 100 W
-
Resolution: 10 mV / 1 mA
-
Setting Accuracy: ≤0.05% + 10 mV (voltage), ≤0.2% + 2 mA (current)
-
Ripple & Noise: <2.0 mV RMS / <5.0 mA RMS
₨45,000.00
10
People watching this product now!
Payment Methods:
Description
🔌 Electrical Specifications
| Feature | Specification |
|---|---|
| Output Channels | 1 |
| Output Voltage | 0 – 60 V |
| Output Current | 0 – 5 A |
| Output Power | 100 W max |
| Resolution | 10 mV / 1 mA |
| Setting Accuracy | Voltage: ≤0.05% + 10 mV Current: ≤0.2% + 2 mA |
| Readback Accuracy | Voltage: ≤0.05% + 10 mV Current: ≤0.2% + 2 mA |
| Ripple & Noise | <2.0 mVrms / <5.0 mArms |
| Load Regulation | ≤0.01% + 5 mV (voltage) / ≤0.1% + 5 mA (current) |
| Line Regulation | ≤0.01% + 3 mV / ≤0.1% + 3 mA |
🧠 Control & Programming
| Feature | Description |
|---|---|
| Display | 2.8″ Color TFT LCD |
| Control Interface | RS-232 (SCPI protocol supported) |
| Remote Control | Supported (via PC or automation systems) |
| List Mode | Up to 200 steps (programmable voltage/current over time) |
| Delayer Mode | Programmable timed outputs (200 steps) |
| Remote Sense | Yes |
🛡️ Protection Features
| Feature | Description |
|---|---|
| OVP | Over Voltage Protection |
| OCP | Over Current Protection |
| OTP | Over Temperature Protection |
| Output On/Off | Manual or Remote |
🧰 Mechanical & Environmental
| Feature | Specification |
|---|---|
| Dimensions | 87 mm × 174 mm × 255 mm (H × W × D) |
| Weight | ~2.5 kg |
| Cooling | Intelligent fan cooling |
| Operating Temp. | 0°C to 40°C |
| Storage Temp. | -20°C to 70°C |
| Humidity | ≤80% RH (non-condensing) |
🔌 Included Accessories
-
Power cord
-
USB-to-RS232 cable (varies by region)
-
User manual
