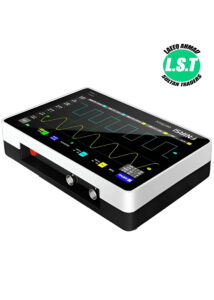

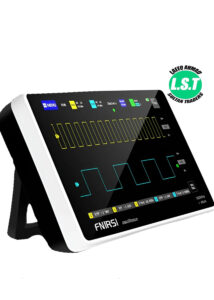

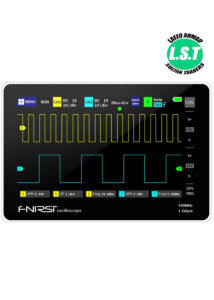

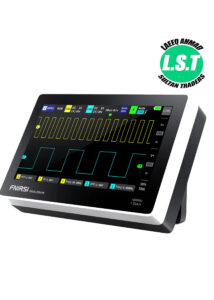

Fnirsi 1013D Tablet Dual Channel 100MHz 1GS/s Touchable Panel Oscilloscope

Name: Fnirsi 1013D Tablet Dual Channel 100MHz 1GS/s Touchable Panel Oscilloscope
Brand: Fnirsi
SKU: FR 1013DS
Availability: InStock

SKU: FR 1013DS

FNIRSI 1013D is a portable dual-channel digital oscilloscope featuring a 7-inch capacitive touchscreen, 100 MHz bandwidth, and 1 GSa/s sampling rate. It offers essential functions like FFT, auto measurements, and waveform storage, making it ideal for hobbyists, educators, and basic electronics diagnostics. Powered by a 6000 mAh battery, it combines portability with touch-based ease of use at an affordable price

₨37,000.00

Add to compare

Add to wishlist

10 People watching this product now!

Payment Methods:

Description

Feature	Specification
Model	FNIRSI 1013D
Display	7-inch 800×480 TFT LCD capacitive touchscreen
Input Channels	2 Channels (CH1 & CH2)
Vertical Sensitivity	50 mV/div to 500 V/div
Time Base Range	10 ns/div to 50 s/div
Input Impedance	1 MΩ ±2%, in parallel with 20 pF ±3 pF
Coupling	DC only
Max Input Voltage	400 V (peak)
Bandwidth	100 MHz (advertised); actual ~20–35 MHz effective
Sampling Rate	1 GSa/s (shared or interleaved)
Memory Depth	240 kpts
Waveform Storage	1000 waveform sets
Screenshot Storage	1000 image captures
Storage Capacity	1 GB internal memory
Cursor Measurements	Voltage and time with delta (ΔV, ΔT, 1/ΔT)
Math Functions	FFT, Addition, Subtraction, Lissajous
Auto Measurements	Vpp, Vavg, Vrms, Frequency, Period, Duty+, Duty-, Max, Min, etc.

Trigger Mode	Auto, Normal, Single
Trigger Source	CH1, CH2
Trigger Type	Edge
Trigger Slope	Rising / Falling

🔋 Power & Physical

Battery	6000 mAh rechargeable lithium battery
Battery Life	~4 hours of continuous use
Charging Port	USB-C or micro USB (varies by version)
Operating Voltage	DC 5 V / 2 A
Dimensions	184 mm × 124 mm × 50 mm
Weight	Approx. 600–800 g (varies slightly)
