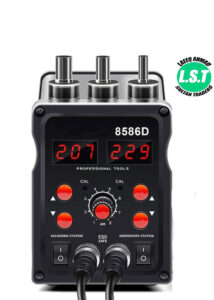

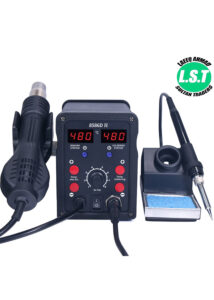

Yihua 8586D-II 2 In 1 SMD Rework Soldering Station

General Specifications:

• Voltage: AC 220V ±10%, 50Hz

• Dimensions: 15 x 18 x 25 cm

• Weight: Approximately 2.0 kg

Hot Air Gun:

• Power: 700W (Peak)

• Temperature Range: 100°C to 480°C

• Airflow: 120 L/min (Maximum)

• Temperature Stability: ±1°C

• Fan Type: Brushless

• Noise Level: <45 dB

• Handle with Sensor Switch: Activates operation mode when picked up and enters standby mode when laid down

• Automatic Cooling Function: Prolongs the heater’s life and protects the hot air gun

Soldering Iron:

• Power: 60W

• Temperature Range: 200°C to 480°C

• Temperature Stability: ±1°C

• ESD Design: Protects sensitive components

• Heater Material: Nickel-chromium alloy

• Tip-to-Ground Resistance: <2Ω
