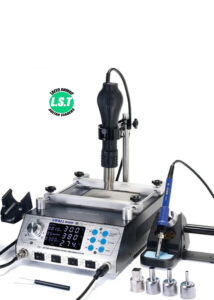

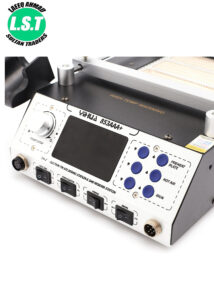

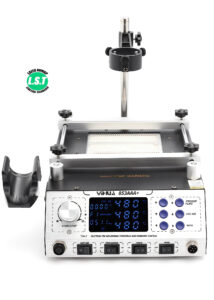

Yihua 853AAA + Digital SMD Soldering Desoldering Hot Air Preheat BGA Rework Station
₨33,500.00
10
People watching this product now!
Payment Methods:
Description
| Machine Parameters | |||
| Rated voltage | AC 220V±10% 50Hz | ||
| Power | ≤1270W | ||
| 300℃The thermostat power of (high-speed PID programmable energy saving) | 250W±10％ | ||
| Working environment | 0～40℃ relative humidity＜80％ | ||
| Storage environment | －20～80℃ relative humidity＜80％ | ||
| Body size | L320xW220xH100mm±5mm | ||
| Weight | 6.5kg | ||
| Parts parameters | Hot air gun | Soldering iron |
| Work voltage | AC 220V±10% 50Hz | AC 26V±10% 50Hz |
| Output power | 650W | 75W |
| Temperature range | 100℃～480℃ | 200℃～480℃ |
| Airflow type | Brushless fan | — |
| Air Flow | 120L/min | — |
| Temperature Stability | ±1℃ (static) | ±1℃ (static) |
| Display Type | LED digital display | LED digital display |
| Temperature correction type | PID digital program | IPID digital program |
| PID Temperature correction cycle | Rapidly 20ms | High-speed 100ms |
| Heating elements | Ceramic skeleton heater | Imported heater |
| Tip ground impedance | — | ＜2Ω |
| Tip of ground voltage | — | ＜2mV |
| Pre-heater platform | |
| Work voltage | AC 220V±10% 50Hz |
| Output power | 600W |
| Temperature range | 50℃–400℃ |
| Temperature stability | ±2℃ (static) |
| Display type | LED digital display |
| Pre-heating platform area | 120X120mm |
| Pre-heating platform material | Ceramic heating material |
| Temperature sensor | Type K thermocouple |
| Temperature range | 50℃–400℃ |
Features
- Programmable hot air gun and pre-heating platform, the pre-heating platform allows for the setting of the operating time, working temperature, and airflow rate of the hot air gun to realize automatic de-soldering.
- Temperature compensation function within ±80°C, automatically corrects the hot air gun and soldering iron temperature caused by environmental change or component maintenance and replacement.
- The timing function allows operating time tracking from the beginning.
- Air gun protection function will automatically power off the hot air gun if any malfunction occurs for safety assurance.
