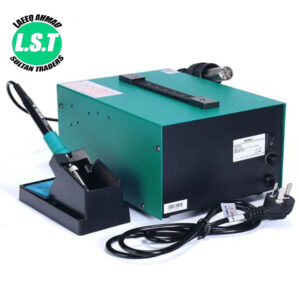

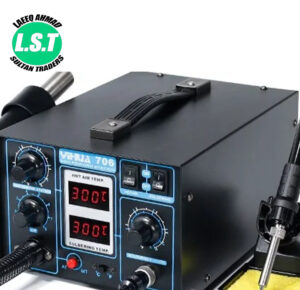

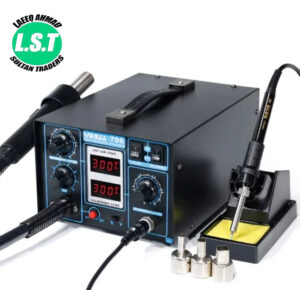

YIHUA 706 2-in-1 Blower Hot Air Rework And Soldering Station

🔧 General Specifications

• Model: YIHUA YH-706

• Type: 2-in-1 Hot Air Rework + Soldering Station

• Power Consumption: 640W

• Input Voltage: AC 110V±10% / AC 220V~240V ±10% (depending on model)

• Display Type: Dual Digital LED Displays (for soldering iron and hot air gun)

🌬️ Hot Air Rework Station (Blower)

• Airflow Type: Brushless fan (in-handle design)

• Air Flow Rate: ≤168 L/min (adjustable)

• Temperature Range: 100°C – 480°C

• Temperature Stability: ±1°C

• Heating Element: Ceramic heater

• Nozzle Types: Compatible with standard round nozzles (typically 3 included)

• Control: Digital buttons with up/down temperature adjustment

• Work Mode: Auto/Manual (auto cools when placed in holder)

• Handle Sensor: Auto start/stop when picked up/placed down

🔧 Soldering Iron

• Power Output: 60W (real); 130W (max rated)

• Temperature Range: 200°C – 480°C

• Temperature Stability: ±2°C

• Heating Element: High-quality ceramic core

• Tip-to-Ground Resistance: <2Ω

• Tip-to-Ground Voltage: <2mV

• Compatible Tips: Uses YIHUA-specific tips (similar to 900M series)

• Handle Cord: Heat-resistant silicone wire

• Sleep Mode: Yes (energy saving)

📏 Physical Specifications

• Dimensions (main unit): Approx. 148 × 99 × 134 mm

• Weight: Approx. 2.8 kg

• Housing Material: Metal chassis with plastic front panel

🧰 Included Accessories

• Hot air gun holder

• Soldering iron holder with sponge

• 3x Hot air nozzles (usually 5mm, 8mm, and 10mm)

• Power cord

• User manual
