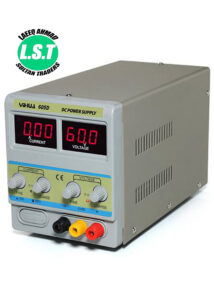

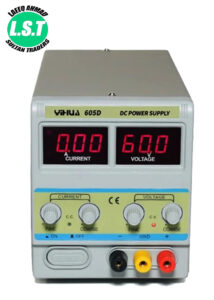

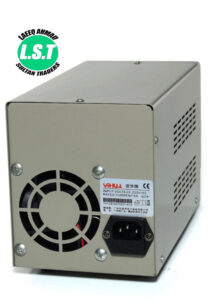

YIHUA 605D Adjustable 60V 5A DC power supply

🔧 Key Specifications

• Output Voltage: 0–60V (continuously adjustable)

• Output Current: 0–5A (continuously adjustable; current limiting effective above 0.2A)

• Output Power: Up to 300W

• Ripple & Noise: ≤3mVrms (5Hz–1MHz) / ≤3mArms

• Load Regulation: ≤0.33%

• Display Accuracy: 0.1V / 0.1A / 1mA

• Protection Features: Overcurrent, short circuit, and over-temperature protection

• Cooling: Air-cooled

• Dimensions: 255 × 130 × 150 mm

• Weight: Approximately 6.1 kg

• Input Voltage: AC 220V ±10%, 50Hz
