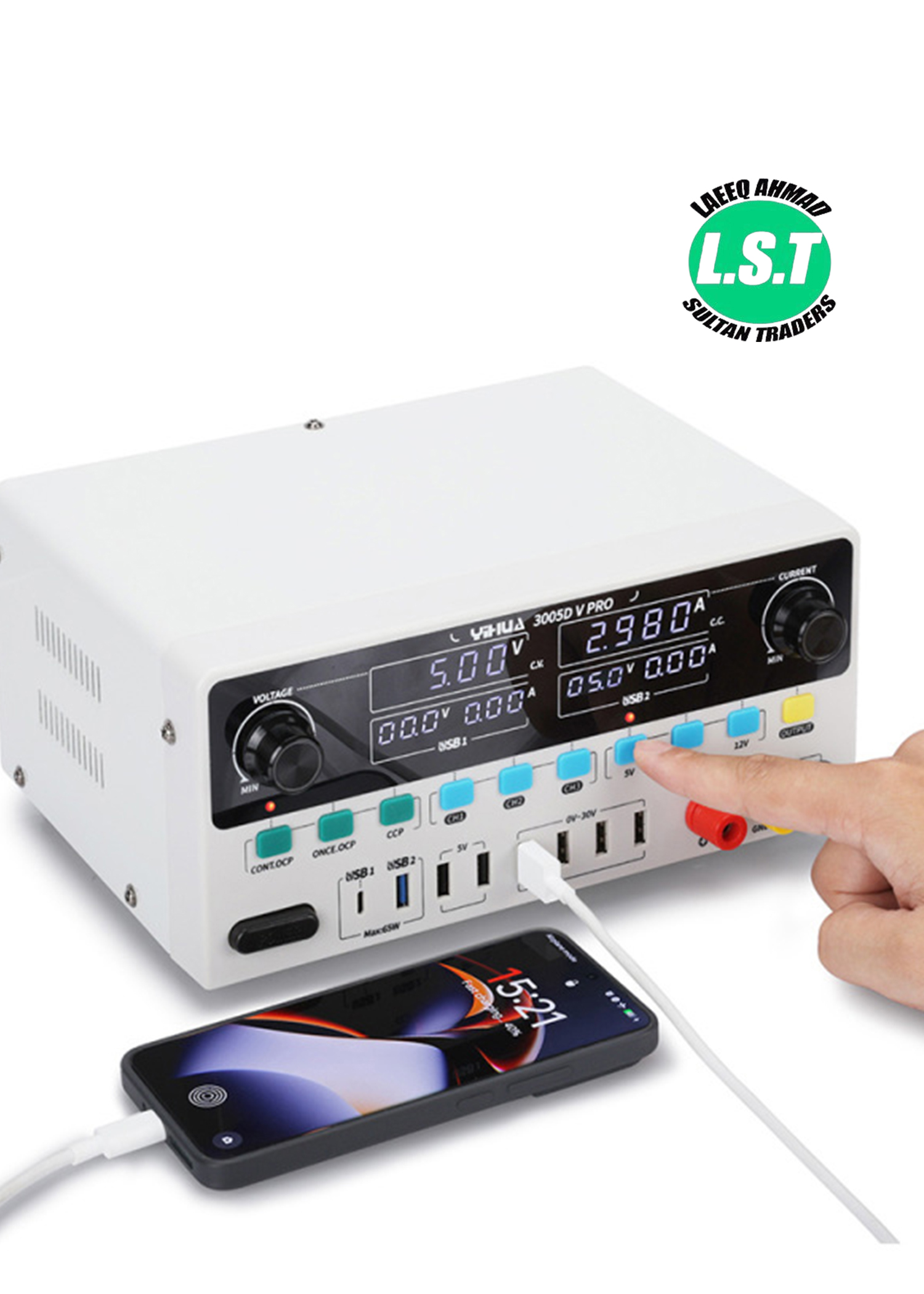

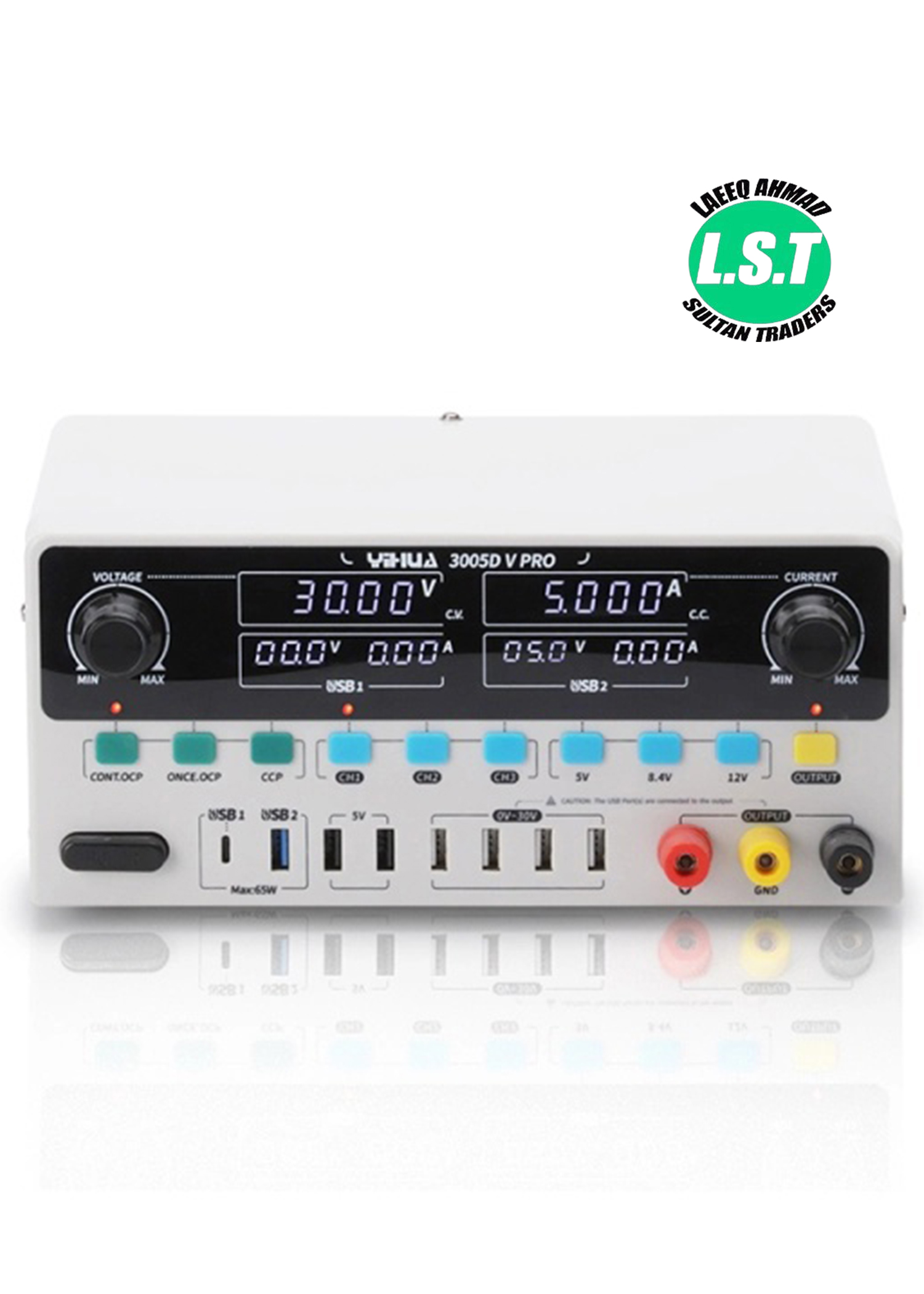

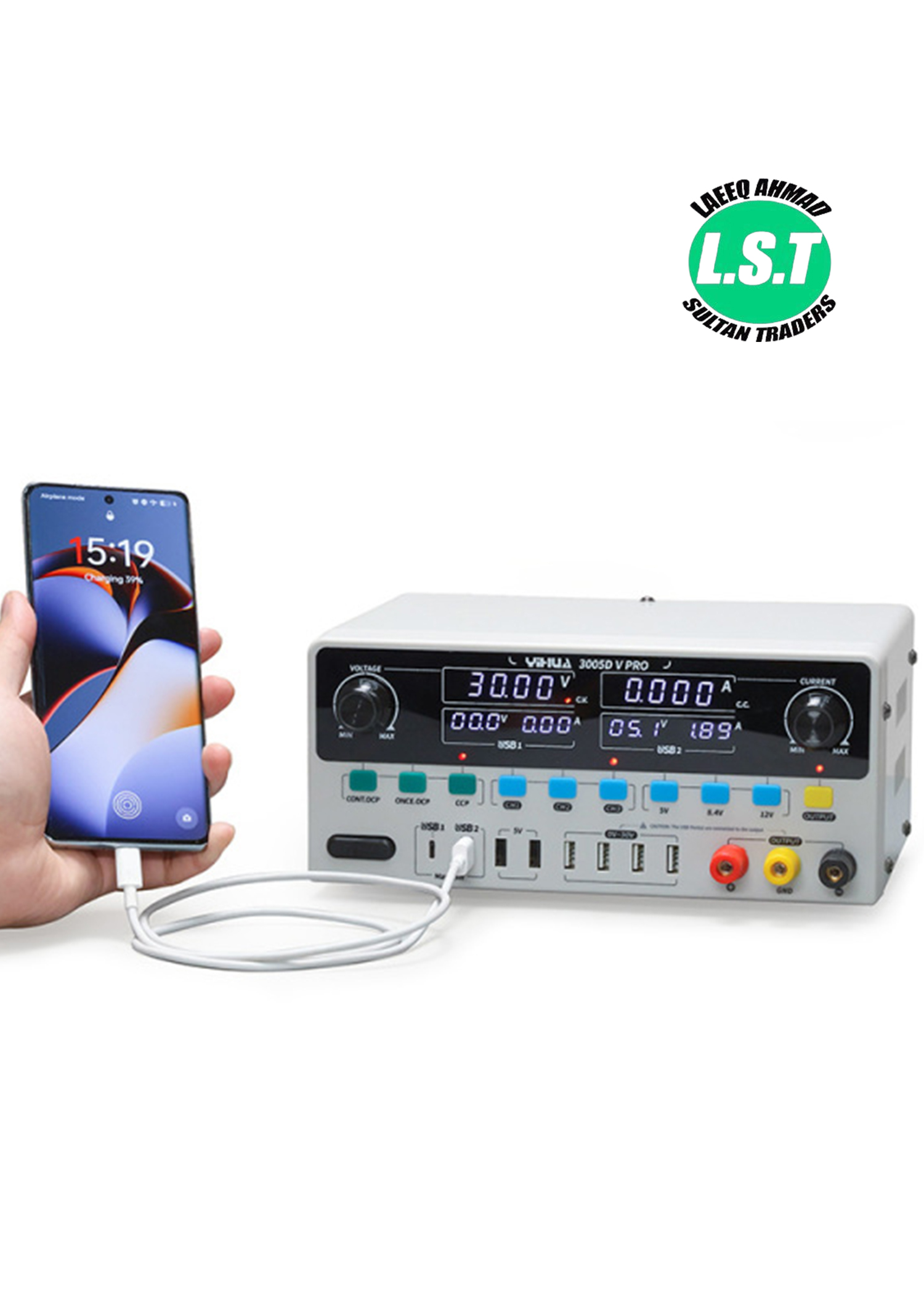

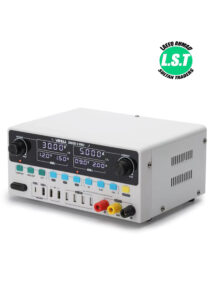

YIHUA 3005D V PRO Linear DC Power Supply Variable 30V 5A single Output Digital DC Power Supply

1. Highly stable voltage regulation,great load capacity, low ripple.With short circuit protection, overcurrent protection and over-heat protection functions.
2.Toroidal transformer inside, minimizing losses and reduced heat generation
3.Quick-access non-adjustable voltages of SV, SAV, and 12V, as well as three pre-set channels to switch among multiple voltage settings quickly.
4.With constant current output, overcurrent auto-stop, and overcurrent auto-resumption mode. Users can choose the appropriate mode based on their applications.
5.With 65W quick charge port, 40W quick charge port and 4 USB ports in parallel with the 30V output. Connect the load to the correct rating to prevent damaging the device.Technical data:
Rated Power:330W
Main Unit Dimensions:L195XW250XH117mm ±10mm
Operating Ambient Temperature: -10°c-40°c/14°F -104 °F
Relative Humidity: <90%
Output Voltage DC :0~30V
Output Power :150W
Accuracy (Voltage) :<0.1 %t0.03V
Accuracy (Current): <03%t3mA
Load Regulation :<0.6%+10mV
Ripple Vrms:<0.5%(10Hz-1MHz)
Output Current :0-5A
