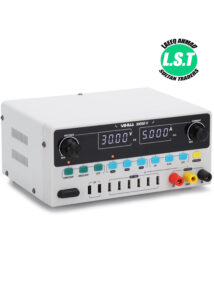

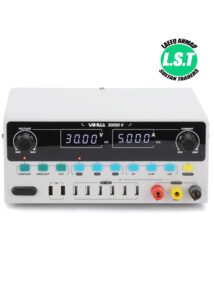

YIHUA 3005D V Linear DC Power Supply Variable 30V 5A Single Output Digital DC Power Supply

1. Highly stable voltage regulation,great load capacity, low ripple.With short circuit protection, overcurrent protection and over-heat protection functions.
2.Toroidal transformer inside, minimizing losses and reduced heat generation
3.Quick-access non-adjustable voltages of SV, SAV, and 12V, as well as three pre-set channels to switch among multiple voltage settings quickly.
4.Constant current output, overcurrent auto-stop, and overcurrent auto-resumption mode. Users can choose the appropriate mode based on their applications.
5.With two 5V USB ports and 6 USB ports in parallel with the 30V output. Connect the load to the correct rating to prevent damaging the device.

Technical data:
Rated Power:270W
Main Unit Dimensions:L196xW250xH117mm ±10mm
Operating Ambient Temperature:-10〜40℃/14℉〜104℉
Relative Humidity:<90%
Output Voltage:DC 0~30V
Output Power:150W
Accuracy (Voltage) :<0.1 %t0.03V
Accuracy (Current) :<03%t3mA
Load Regulation: <0.6%+10mV
Ripple Vrms:<0.5%(10Hz-1MHz)
Output Current :0-5A
