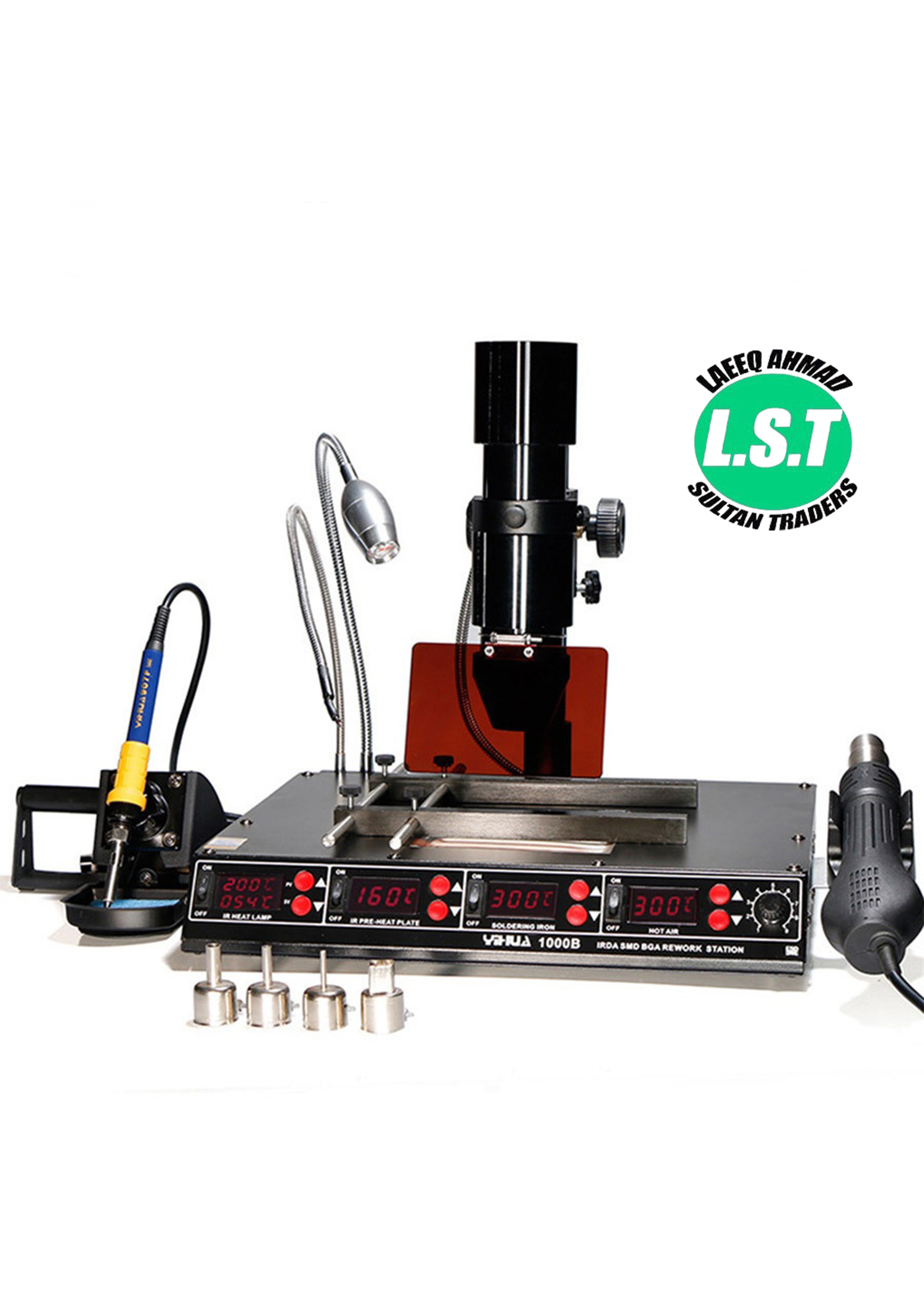

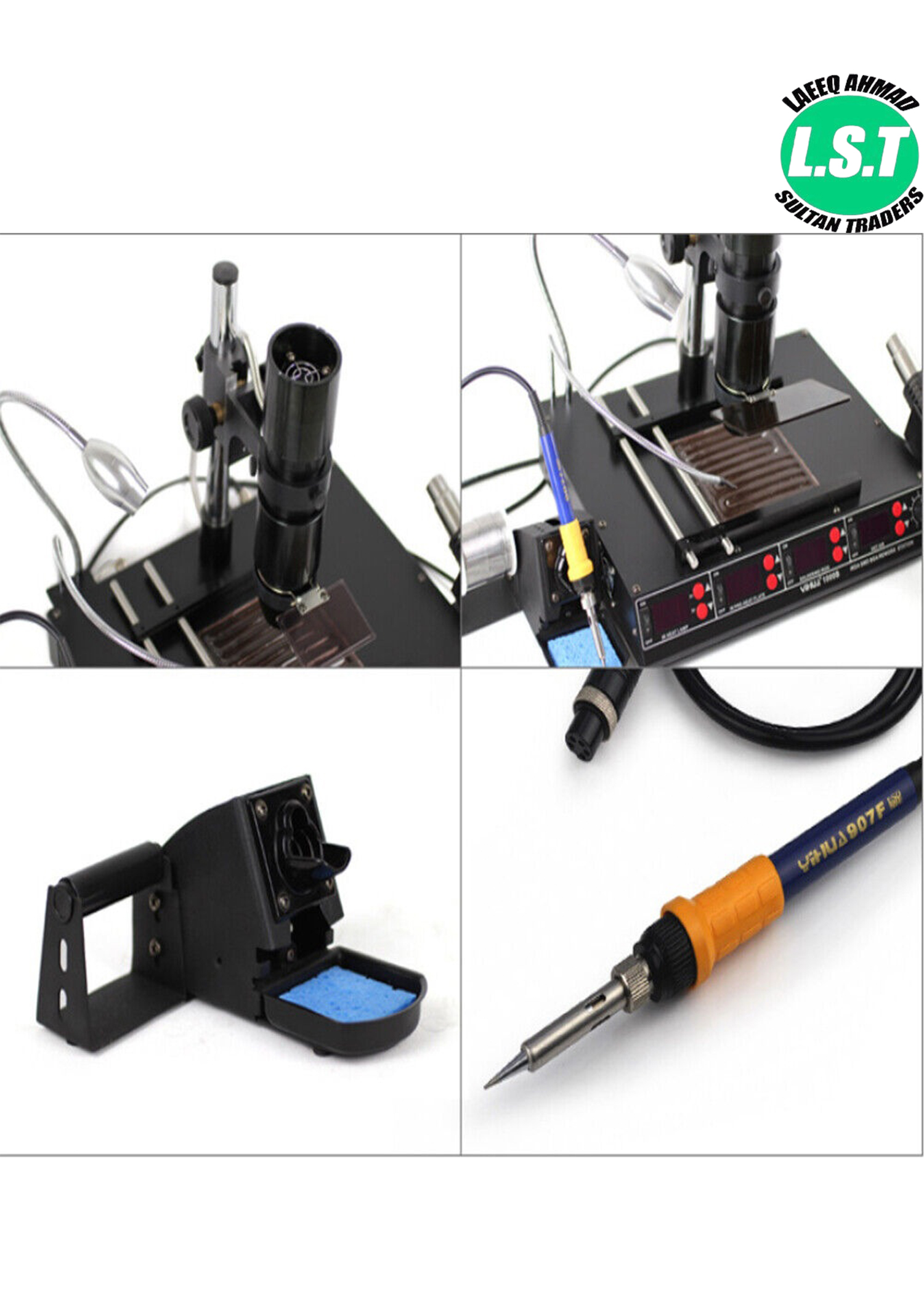

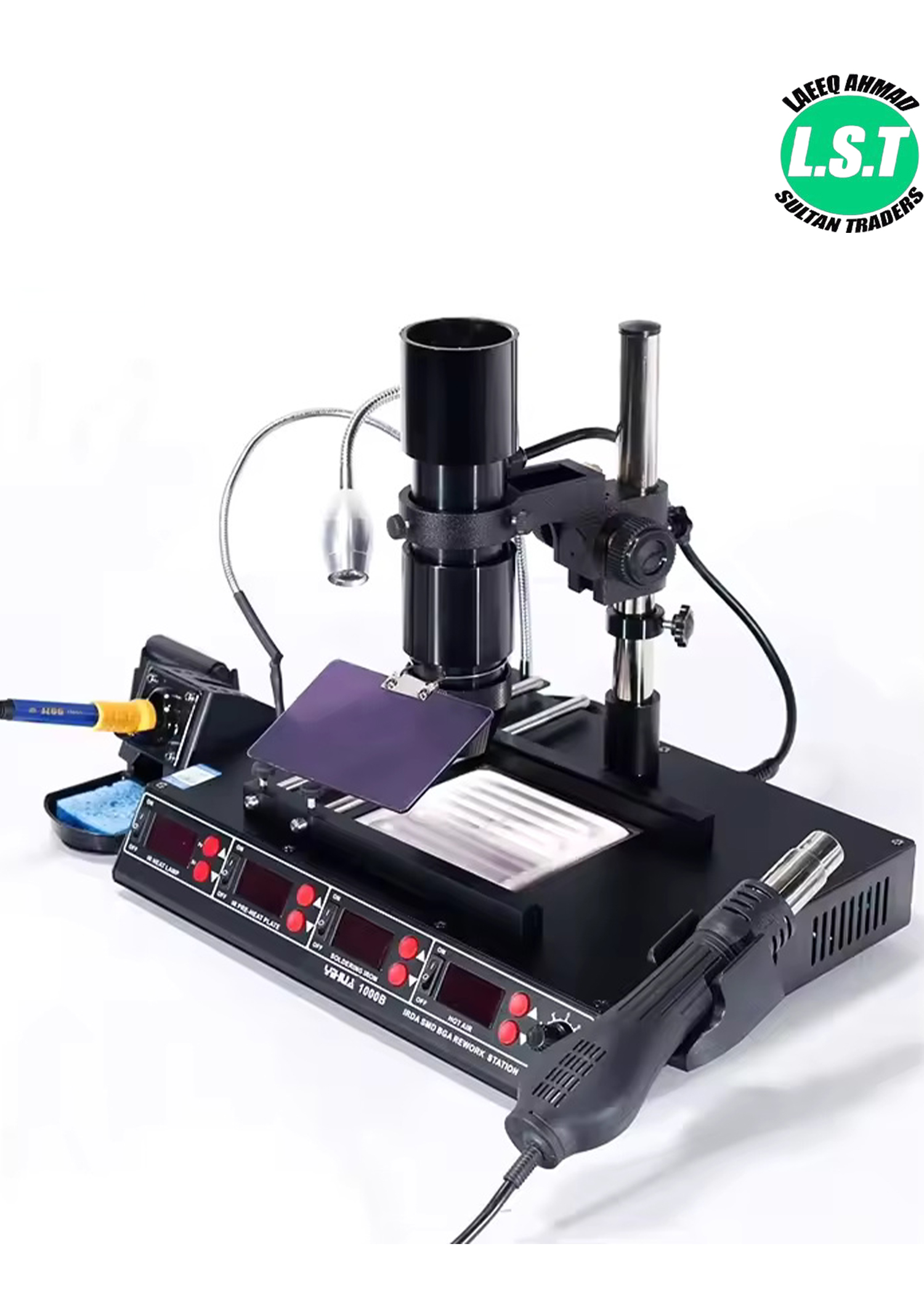

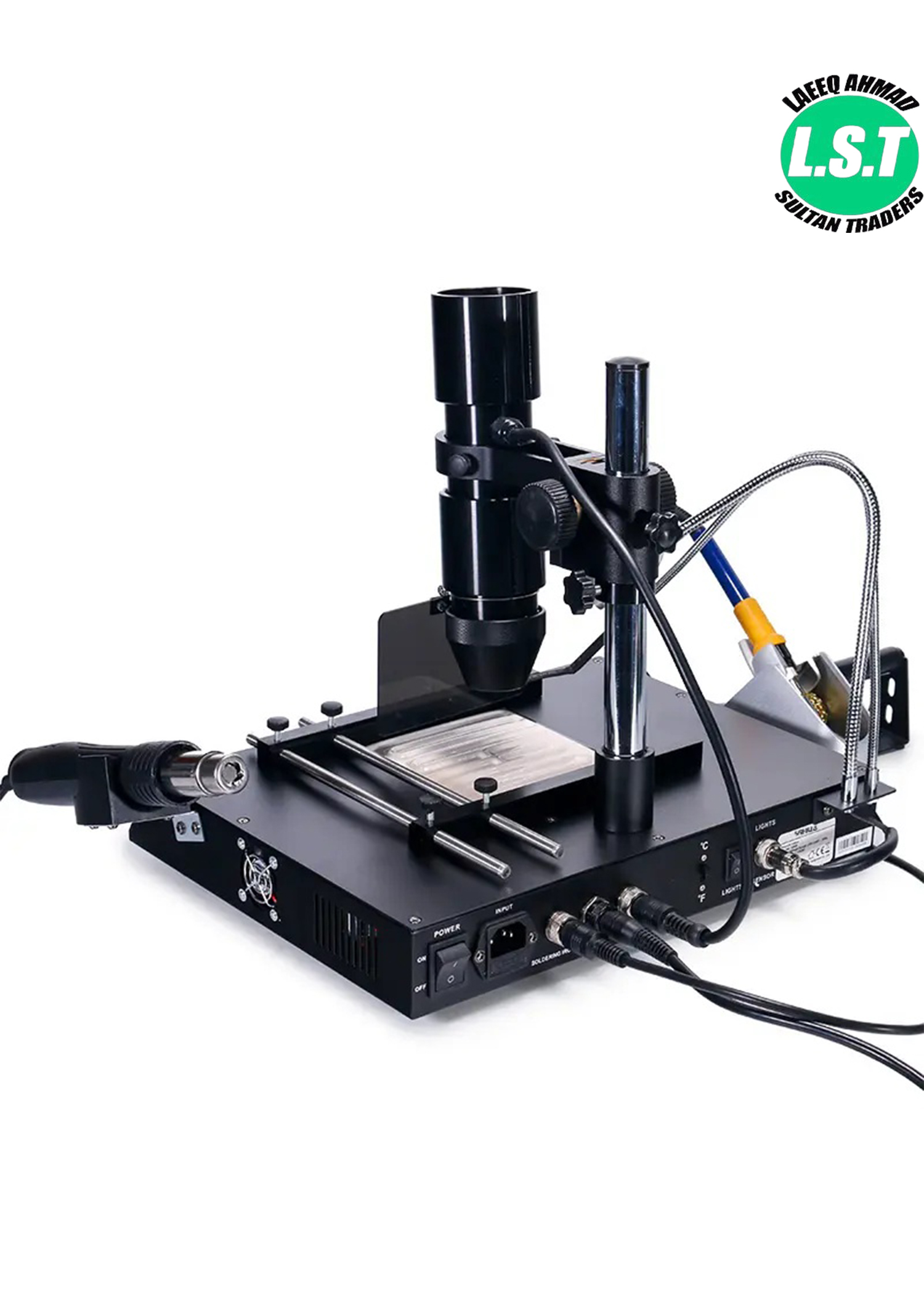

YIHUA 1000B 4-in-1 Infrared BGA Preheat BGA Rework Station

🔧 Technical Specifications

Infrared Lamp

• Operating Voltage: 220 V AC ±10%, 50 Hz

• Maximum Power: 150 W

• Temperature Range: 50°C – 350°C (122°F – 662°F)

• Effective Exposure Area: 30 × 30 mm

• Lens Diameter: Ø28 mm / Ø48 mm

• Temperature Sensor: Type K thermocouple

• Temperature Stabilization: PID program

• Temperature Control: Sensor limiter / Manual input

• Operating Voltage: 220 V AC ±10%, 50 Hz

• Maximum Power: 600 W

• Temperature Range: 50°C – 200°C (122°F – 392°F)

• Effective Exposure Area: 130 × 130 mm

• Temperature Sensor: Type K thermocouple

• Temperature Stabilization: PID program

• Temperature Control: Manual input

Hot Air Gun

• Maximum Power: 650 W

• Temperature Range: 100°C – 480°C (212°F – 896°F)

• Airflow: Up to 120 L/min

• Temperature Stability: ±1.0°C

• Temperature Stabilization: PID program

• Heater: Ceramic

• Blower Type: Brushless motor

Soldering Iron

• Maximum Power: 75 W

• Temperature Range: 200°C – 480°C (392°F – 896°F)

• Heater: Ceramic

General Specifications

• Maximum Total Power: 1450 W

• Power Supply: 220 V AC ±10%, 50 Hz

• Display: 2-color red/green, LED × 4

• Dimensions: 287 × 361 × 53 mm

• Weight: 7.25 kg (9.25 kg in packaging)
