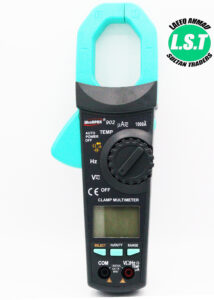

Winrpex VC902 AC 1000V Digital Clamp Meter

SKU: vc903

4,000.00

15 People watching this product now!

Payment Methods:

payment-methods

Description

Specifications:
Display: LCD
Max.Dispaly: 5999
Measuring Method: ADC+MCU
Over Range Indication: “OL” display
Battery Type: 2 x 1.5V AAA Battery
Auto Power Off: Yes
Diode Test: Yes
DC Voltage Range: 600mV/6V/60V/600V/1000V
DC Voltage Accuracy: ±(0.5%+3)/±(10.8%+10)
AC Voltage Range: 600mV/6V/60V/600V/750V
AC Voltage Accuracy: ±(0.8%+5)/±(1.2%+10)
AC Current Range: 600μA/6000μA/60A/600A/1000A
AC current accuracy: ±(0.8%+10)/±(2%+30)
Resistance range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Resistance accuracy: ±(0.8%+5)–±(1%+25)
Capacitance range: 60nF/600nF/6μF/60μF/600μF/6000μF
Capacitance accuracy: ±(3.5%+20)–±(5%+10)
Frequency range: 10Hz-20MHz
Frequency accuracy: ±(1%+5)
Temperature range: -20~1000°/0-1832°F °
Continuity: Buzzer sounds <50±20Ω
Diode Measurement: Open circuit voltage 3V, maximum current about 1mA
Item Size: 9.331 x 3.543 x 1.575 in
Item Weight: 11.25 oz

Package List:
1 x Digital Clamp Meter
1 Pair x Test Leads
1 x Thermocouple
1 x Carrying Bag
1 x User Manual
