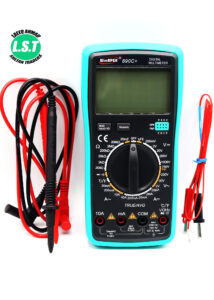

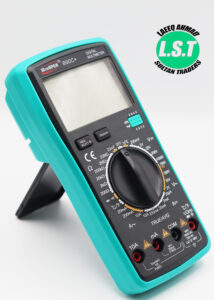

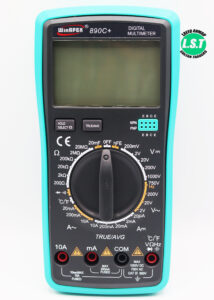

Winrpex 890C+ Digital Multimeter Dc Ac Voltmeter Fast Accurately Measures Current Resistance Capacitance

Specifications:

• Model: 890c+
• Basic Function: Range Accuracy
• DC Voltage: 200mV/2V/20V/200V/1000V (0.5%+4)
• AC Voltage: 200m/2V/20V/200V/750V (0.8%+3)
• DC Current: 20uA/2mA/20mA/200mA/10A (0.8%+8)
• AC Current: 20mA/200mA/10A (1.0%+8)
• Resistance: 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ (0.8%+5)
• Capacitance: 20nF/200nF/2uF/20uF/200uF (2.5%+20)
• 20mF (5.0%+10)
• 30mF (<20mF reading is for reference only) (10%+5)
• True effective value measurement: YES
• Average measurement: YES
• ACV frequency response: 40Hz-1kHz (only applicable to sine wave and triangle wave, >200Hz other waveforms are for reference only)
• Diode test: about 4.2V (convenient to test and light up the ED light)
• Continuity test: about 1V
• hFE: can measure the hFE parameters of NPN or PNP transistors
• Data retention: HOLD
• High-resolution analog bar: 20 segments
• LCD backlight: YES
• Battery undervoltage prompt: YES
• Automatic shutdown: about 15 minutes
• Input impedance: ≥10MΩ
• Use environment: 18℃28℃ (64℉82℉); relative humidity ≤75%
• Battery: 9V battery (6F22)
• LCD size: 69*45.5 mm
• Body size: 1849046mm (LWH)
• Battery: 9V battery (6F22) (not included)

Package Included:

• 1 pc * Digital Multimeter (without battery)
• 1 pair * Test Lead
• 1 pc * manual
