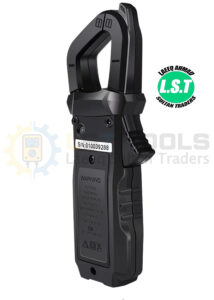

WinAPEX ET8202 AC Digital Clamp Meter
₨3,700.00
13
People watching this product now!
Payment Methods:
Description
📋 General Specifications
| Feature | Description |
|---|---|
| Display | 6000 counts, True RMS |
| Auto-ranging | Yes |
| Clamp Opening | 27 mm (approx.) |
| Power Supply | 2 × AAA 1.5V batteries |
| Backlight | Yes, with auto function |
| Flashlight | Built-in |
| Temperature Sensor | Included (K-type thermocouple) |

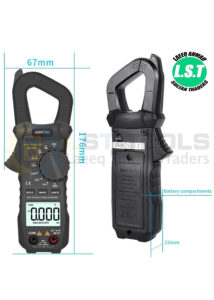

| Size | 176 × 67 × 33 mm |
| Weight | ~185 g |
🔌 Electrical Measurement Ranges
| Measurement | Range | Accuracy |
|---|---|---|
| AC Current | 6A / 60A / 600A | ±(2.5% + 5) |
| AC Voltage | 6V / 60V / 600V / 750V | ±(1.2% + 5) |
| DC Voltage | 6V / 60V / 600V / 1000V | ±(0.8% + 2) |
| Resistance | 600Ω to 60MΩ | ±(1.0% + 2) |
| Capacitance | 10nF to 60mF | ±(4.0% + 5) |
| Frequency | 10Hz to 10MHz | ±(1.0% + 3) |
| Temperature | –20°C to 1000°C / –4°F to 1832°F | ±(1.0% + 5) |
| Diode Test | Yes | – |
| Continuity | Buzzer < 50Ω | – |
| Non-contact Voltage Detection (NCV) | Yes | With LED indicator |
⚙️ Other Features
-
True RMS: Accurate for non-sinusoidal signals.
-
MAX/MIN Hold: Yes
-
Data Hold: Yes
-
Low Battery Indicator: Yes
-
Auto Power Off: Yes (can be disabled)
-
Square Wave Output: Yes (1kHz) for basic testing
