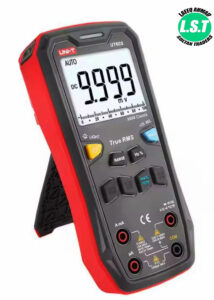

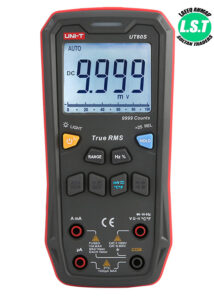

UNI-T UT60S Digital Smart Multimeter

SKU: UT60S

7,000.00

20 People watching this product now!

Payment Methods:

payment-methods

Description

  • DC Voltage: 9.999 mV to 999.9 V ±(0.5% + 3 digits)

  • AC Voltage: 9.999 mV to 999.9 V ±(0.8% + 3 digits)

  • DC Current: 999.9 µA to 10 A ±(0.8% + 3 digits)

  • AC Current: 999.9 µA to 10 A ±(1.0% + 3 digits)

  • Resistance: 999.9 Ω to 99.99 MΩ ±(0.8% + 2 digits)

  • Capacitance: 9.999 nF to 99.9 mF ±(4.0% + 5 digits)

  • Frequency: 99.99 Hz to 9.999 MHz ±(0.1% + 5 digits)

  • Duty Cycle: 0.1% to 99.9% ±(3% + 5 digits)

  • Temperature: –40 °C to 1000 °C (–40 °F to 1832 °F) ±4 °C / ±5 °F

    ⚙️ Features

    • Display: 9999-count LCD with analog bar graph

    • True RMS: Accurate measurements for both AC and DC signals

    • Auto/Manual Ranging: Flexible measurement options

    • Non-Contact Voltage Detection (NCV): Safe detection of live wires

    • Diode and Continuity Test: Component and circuit testing

    • Data Hold & Relative Mode (REL): Convenient measurement functions

    • Backlight: Enhanced visibility in low-light conditions

    • Auto Power Off: Conserves battery life after 15 minutes of inactivity

    • Low Battery Indicator: Alerts when battery replacement is needed

    • Three-Color LED Indicator: Visual alerts based on measurement thresholds

      🛡️ Safety & Build

      • Safety Ratings: CAT II 1000 V / CAT III 600 V, CE certified

      • Housing: Rugged double-injection design for durability

      • Operating Temperature: 0 °C to 40 °C

      • Power Supply: 3 × 1.5 V AAA batteries

      • Dimensions: 169 mm × 81 mm × 46 mm

      • Weight: Approximately 290 g
