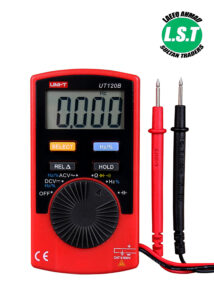

UNI-T UT120B Pocket Size Digital Multimeter
The UNI-T UT120B is a compact, pocket-sized digital multimeter designed for quick and accurate electrical measurements. It features auto-ranging, measures voltage, resistance, capacitance, frequency, and includes diode and continuity tests—ideal for hobbyists, technicians, and on-the-go troubleshooting
₨4,500.00
Payment Methods:
Description
🔧 Specifications
-
Display: 4000-count LCD (43mm Ă— 22mm)
-
Auto Range: Yes
-
Measurements:
-
DC Voltage: 400mV / 4V / 40V / 400V / 600V (±0.8%+1)
-
AC Voltage: 4V / 40V / 400V / 600V (±1.2%+3)
-
Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ (±1.0%+2)
-
Capacitance: 4nF / 40nF / 400nF / 4μF / 100μF (±4.0%+3)
-
Frequency: 10Hz to 100kHz (±0.5%+3)
-
Duty Cycle: 0.1% to 99.9%
-
-
Other Functions:
-
Diode Test
-
Continuity Buzzer
-
Relative Mode
-
Data Hold
-
Auto Power-Off (~30 minutes)
-
Low Battery Indication (≤2.4V)
-
-
Power Supply: 1 Ă— CR2032 3V battery
-
Dimensions: 110mm Ă— 58.2mm Ă— 10.8mm
-
Weight: 76g
-
Certifications: CE, UKCA, cETLus
