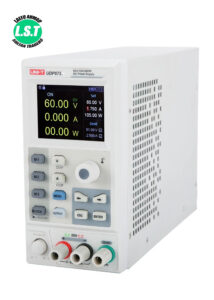

UNI-T UDP6730 360W Basic DC Switching Power Supply 40V/30A
| DC Switching Type |
1Ch Channels |
| 360W Total Power |
40V Output Voltage |
| 30A Output Current |
10mV/1mA Resolution |
₨88,000.00
18
People watching this product now!
Payment Methods:
Description
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Model | UNI-T UDP6730 |
| Output Channels | 1 (Single Channel) |
| Output Voltage Range | 0 – 40 V |
| Output Current Range | 0 – 30 A |
| Maximum Output Power | 360 W |
| Voltage Resolution | 10 mV |
| Current Resolution | 1 mA |
| Voltage Setting Accuracy | ≤ (0.1% of reading + 10 mV) |
| Current Setting Accuracy | ≤ (0.3% of reading + 30 mA) |
| Voltage Ripple & Noise | ≤ 12 mVrms |
| Current Ripple & Noise | ≤ 72 mArms |
⚙️ Functional Features
-
Output Modes: Constant Voltage (CV) and Constant Current (CC)
-
Protection Modes: Overvoltage (OVP), Overcurrent (OCP), Overtemperature (OTP), Short Circuit
-
Remote Sensing: Yes
-
Sequence/List Function: Yes (for automated test sequences)
-
Delay Setting: Programmable delay between steps
🔌 Connectivity

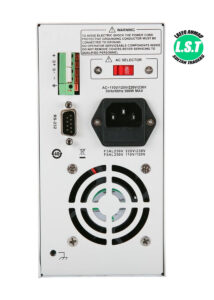

| Interface | Details |
|---|---|
| RS-232 | Supported (for PC control) |
| USB (optional) | May be supported with adapter/software |

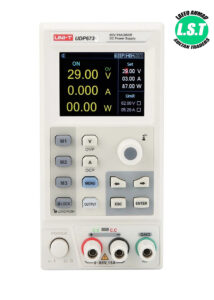

🖥️ Display
-
Type: 2.8″ TFT LCD
-
Displays: Voltage, Current, Power, Status Indicators
📏 Mechanical & Environmental
| Parameter | Value |
|---|---|
| Dimensions | 87 mm × 174 mm × 255 mm |
| Weight | ~2.5 kg |
| Cooling | Intelligent fan cooling system |
| Operating Temp | 0°C to 40°C |
| Storage Temp | -20°C to 70°C |
| Humidity | ≤ 80% RH (non-condensing) |
📦 Included Accessories
-
Power cord
-
User manual
-
RS-232 cable (model dependent)
