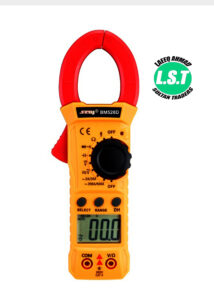

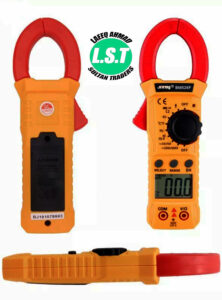

SZBJ BM528D High Precision AC Power Factor Digital Clamp Meter
-
Clamp jaw opening: 30 mm (fits insulated cables)
-
Display: 1999‑count LCD
-
Power: 2×AAA batteries; auto power‑off to save battery
-
Dimensions: ~198 × 68 × 35 mm; Weight: ~220–240 g
-
Safety rating: CAT II 600 V; CE & RoHS certified
₨2,750.00
11
People watching this product now!
Payment Methods:
Description
📊 Technical Specifications
🔌 Electrical Measurements
| Function | Range | Accuracy | Notes |
|---|---|---|---|
| AC Current | 2A / 20A / 200A / 600A | ±(2.5% + 10) | True RMS, clamp measurement only |
| AC Voltage | 2V / 20V / 200V / 700V | ±(1.2% + 5) | True RMS |
| DC Voltage | 200mV / 2V / 20V / 200V / 1000V | ±(0.8% + 2) | |
| Resistance (Ω) | 200Ω / 2kΩ / 20kΩ / 200kΩ / 20MΩ | ±(1.0% + 2) | |
| Capacitance | 20nF / 200nF / 2μF / 20μF / 2mF | ±(4.0% + 3) | |
| Frequency | 10Hz to 10kHz | ±(1.5% + 5) | Measures AC frequency |
| Diode Test | Yes | Pass/Fail | Forward voltage drop shown |
| Continuity | Yes | Audible Beep | Buzzer sounds < 50Ω |

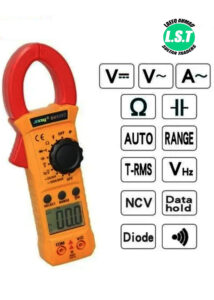

⚙️ General Features
| Feature | Description |
|---|---|
| True RMS | Yes |
| Data Hold | Yes |
| Max Hold | Yes |
| Auto Power Off | After approx. 10 minutes of inactivity |
