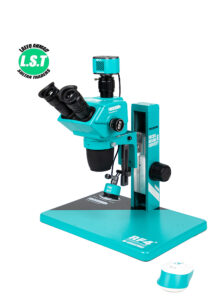

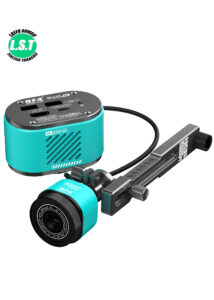

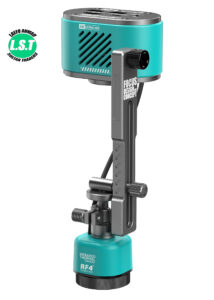

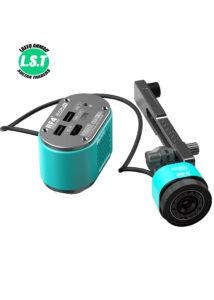

RF4 RF-C39 Infrared Bispectral Thermal Imager Short Circuit Tester 4K Camera PCB Board Fault Diagnosis and Maintenance Tool

📸 Camera Specifications

• Sensor: 1/2.8 inch 8.29-megapixel SONY CMOS

• Pixel Size: 1.45μm × 1.45μm

• Image Output:

  • HDMI: 3840×2160 @30fps / 1080P @60fps

  • USB 2.0: 3840×2160 @30fps (drive-free output)

• Lens Interface: CS mount

• White Balance: Manual/Automatic; adjustable RGB channels

• Exposure: Manual/Automatic; brightness adjustable

• Image Formats: Supports photo and video capture in JPG format

• Crosshair & Grid Lines: 8 adjustable lines (color, thickness, position); center cross-line display toggle

• Menu Languages: English, Chinese, Traditional Chinese, Spanish (default: English)

• Image Stability: Enhanced clarity with anti-shake technology

🔧 Thermal Imaging & Hardware Features

• Dual-Spectrum Fusion: Combines infrared thermal imaging with visible light for comprehensive diagnostics

• Storage & Control:

  • USB Ports: 2× USB 2.0 (for U-disk storage and mouse operation)

  • Storage: Supports USB flash drive storage

• Power Supply: Type-C DC 5V/2A

• Image Orientation: Supports horizontal and vertical mirroring

• Device Settings: Parameters can be saved upon shutdown

📐 Physical Specifications

• Dimensions: 86 × 53 × 55 mm

• Net Weight: Approximately 0.322 kg

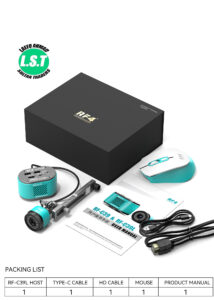

📦 Package Contents

• 1 × RF4 RF-C39 Thermal Camera

• 1 × USB Cable

• 1 × HDMI Cable

• 1 × Mouse
