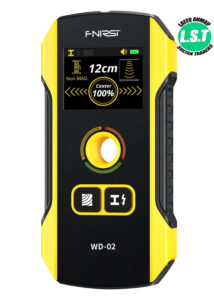

FNIRSI FR WD-02 Wall Detector Scanner

Specifications

• Detection Capabilities:

  • Ferrous Metals: Up to 120 mm

  • Non-Ferrous Metals (e.g., Copper): Up to 100 mm

  • AC Live Wires: Up to 50 mm

  • Single-Strand Copper Wire (≥4 mm²): Up to 40 mm

  • Wood:

    • Precision Mode: Up to 20 mm

    • Depth Mode: Up to 38 mm

• Detection Modes:

  • Three modes: Metal, Wood, and AC detection


    • Display & Indicators:

      • High-resolution TFT color screen

      • Visual indicators: Green (no target), Yellow/Red (target proximity)

      • Audible alerts: Beeps when a target is detected; continuous alerts at the center

    • Design & Usability:

      • Compact dimensions: 138 x 68 x 22 mm

      • Lightweight: 122 g

      • Center positioning hole for precise marking and drilling

    • Power & Battery:

      • Built-in 300 mAh rechargeable lithium battery

      • USB-C charging

      • Automatic shutdown after 5 minutes of inactivity


        • Operating Conditions:

          • Operating temperature: -10°C to 50°C

          • Working humidity:

            • Metal Mode: 0% to 85% RH

            • Wood Mode: 0% to 60% RH

            • AC Mode: 0% to 30% RH

        • Additional Features:

          • Supports 6 languages

          • 3-level sensitivity adjustment

          • Ergonomic anti-slip handle
