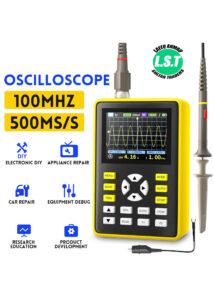

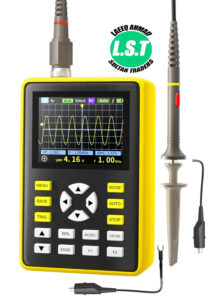

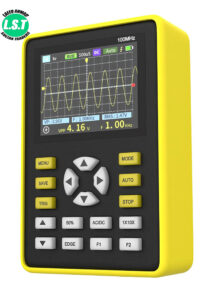

FNIRSI 5012H 100MHz 500MS/s Digital Handheld Pocket Oscilloscope

🔧 Key Specifications

• Bandwidth: 100 MHz (effective 5 MHz with 1X probe, 100 MHz with 10X probe)

• Sampling Rate: 500 MS/s

• Display: 2.4-inch TFT LCD, 320×240 resolution

• Vertical Sensitivity: 50 mV/div to 100 V/div

• Time Base Range: 50 s/div to 6 ns/div

• Input Impedance: 1 MΩ, 25 pF

• Max Input Voltage: 80 V (1X), 800 V (10X)

• Storage Depth: 128 KB

• Built-in Memory: 64 MB (stores up to 2000 waveform images)

• Battery: 3000 mAh lithium, up to 8 hours of use

• Weight: Approximately 250 g

• Dimensions: 114 × 74 × 33 mm

  ✅ Features

  • Trigger Modes: Auto, Normal, Single

  • Trigger Edge: Rising/Falling

  • Waveform Manager: Thumbnail browsing, viewing, deletion

  • One-Button AUTO: Automatic waveform adjustment

  • Anti-Burn Protection: Withstands up to 600 V (1X probe)

  • Afterglow Display: Reduces flicker during waveform refresh

  • 12 Measurement Parameters: VPP, Vmax, Vmin, Vrms, Frequency, Duty Cycle, etc.

  • Protective Silicone Sleeve: Anti-slip and shock-resistant
