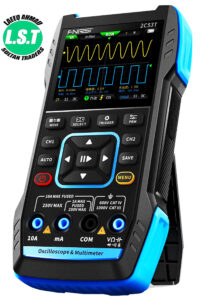

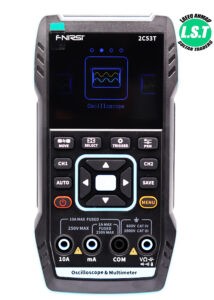

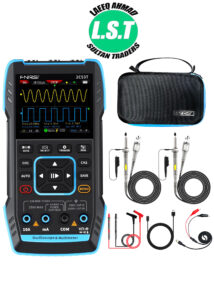

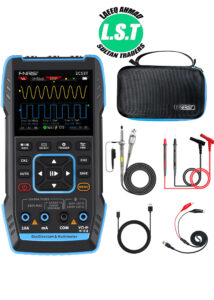

FNIRSI 2C53T Handheld 3in1 Oscilloscope Multimeter Signal Generator

Brand   FNIRSI

Model   2C53T

Display Screen  2.8 inch HD color screen

Resolution ratio  320*240

Charging Specifications  TYPE-C (5V/1A)

Battery    3000mAh lithium battery

Support Functions  Oscilloscope, Signal generator, Multimeter (view functional parameters for details)

Standby Time  6h (laboratory theoretical maximum)

Language  Chinese and English

Product Volume   167*89*35mm

Weight  300g

Channel  Dual channel

Sample Rate  250MS/s

Analog Bandwidth  50M(dual channel independent 50M)

Storage Depth  1Kpts

Impedance  1MΩ

Time Base Range  10ns-20s

Vertical Sensitivity   10mV/div-10V/div (x1)

Maximum Measured Voltage  ±400V

Trigger Mode  AUTO/Normal/Single

Trigger Type Rising edge, Falling edge

Display Mode  Y-T/Rolling/X-Y

Coupling Method  AC/DC

Persistence  OFF, 500ms, 1s, ∞

Math  8 Basic Operations + FFT

Waveform Screenshot Save   supported

Export Waveform Image    Supported

Cursor Measurement  Supported

Infinite Afterglow   Supported

13 Signal Waveforms   Output waveform: sine wave, rectangular wave, sawtooth wave, half wave, full wave, positive step wave, reverse step wave, exponential rise, exponential fall, DC, multi-audio, Sinker pulse, Lorentz wave

Output Frequency   0-50KHZ

Output Amplitude  0-3V

Output Duty Cycle  0-100%

DC Voltage    1.9999V / 19.999V / 199.99V / 1000V

AC Voltage   1.9999V / 19.999V / 199.99V / 750.0V

DC Current   19.999mA / 199.99mA / 1.9999A / 9.999A

AC Current    19.999mA / 199.99mA / 1.9999A / 9.999A

Resistance    19.999MΩ / 1.9999MΩ / 199.99KΩ / 19.999KΩ
1.9999KΩ / 199.99Ω

Capacitance   999.9uF / 99.99uF / 9.999uF / 999.9nF / 99.99nF / 9.999nF / 9.999mF / 99.99mF

Temperature   (-55~1300℃) / (-67~2372℉)

Diode   YES

Continuity Test  YES
