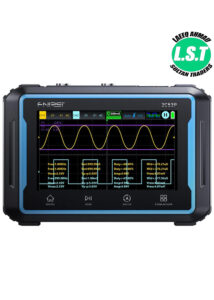

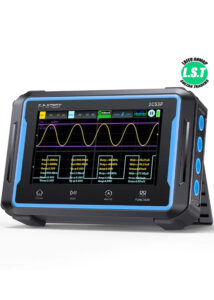

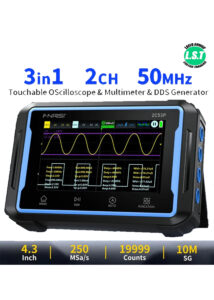

FNIRSI 2C53P 3-IN-1 50MHz 250MS/s Dual Channel Tablet Touchable Oscilloscope Multimeter DDS Generator

Name: FNIRSI 2C53P 3-IN-1 50MHz 250MS/s Dual Channel Tablet Touchable Oscilloscope Multimeter DDS Generator
Brand: Fnirsi
SKU: FR 2C53P
Availability: InStock

SKU: FR 2C53P

₨31,000.00

Add to compare

Add to wishlist

11 People watching this product now!

Payment Methods:

Description

Feature	Value
Channels	2
Bandwidth	50 MHz
Real-time Sample Rate	250 MSa/s
Time Base Range	10 ns/div ~ 10 s/div
Vertical Sensitivity	10 mV/div ~ 10 V/div
Record Length	Up to 12k points per channel
Input Impedance	1 MΩ ±2%
Max Input Voltage	±400 V (DC + AC peak)
Coupling	DC, AC, GND
Trigger Type	Auto, Normal, Single
Trigger Mode	Edge, Video, Pulse, Slope, Alternate
Math Functions	+, –, ×, ÷, FFT
Display Modes	YT, XY, Roll
Probe Attenuation Support	x1 / x10 / x100 / x1000

Measurement	Range
DC Voltage	0.1 mV ~ 1000 V
AC Voltage	0.1 mV ~ 750 V
DC Current	0.1 μA ~ 10 A
AC Current	0.1 μA ~ 10 A
Resistance	0.1 Ω ~ 60 MΩ
Capacitance	1 nF ~ 99.99 mF
Frequency	10 Hz ~ 10 MHz
Temperature	-55 °C ~ 1300 °C (with probe)
Continuity Test	Yes, with buzzer
Diode Test	Yes
Display	4½-digit, 19,999 counts
True RMS	Yes

Feature	Value
Output Waveforms	Sine, Square, Triangle, Sawtooth, Pulse, Arbitrary, etc. (12 types)
Max Sine Frequency	10 MHz
Other Waveforms	Up to 5 MHz
Output Amplitude	0.1 V to 3.0 V (adjustable)
Duty Cycle Range	0% – 100% (square wave)
Frequency Step	1 Hz
Impedance	50 Ω

🖥️ Display & Interface

Feature	Value
Screen	4.3-inch IPS TFT touchscreen
Resolution	480 × 272 pixels
Control	Touch + Physical Buttons

🔋 Power & Battery

Feature	Value
Battery Capacity	4000 mAh lithium battery
Battery Life	~4 hours (depending on use)
Charging Port	USB Type-C (5V/2A)
Charging Time	~3 hours

📦 Physical & Packaging

Feature	Value
Dimensions	Approx. 190 mm × 120 mm × 40 mm
Weight	Approx. 450 g

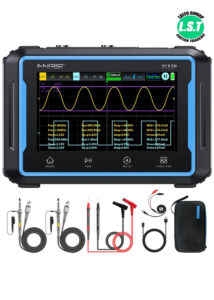

Accessories	2x Oscilloscope probes (P6100), 1x Multimeter probe, Alligator clips, USB cable, Manual
