Features

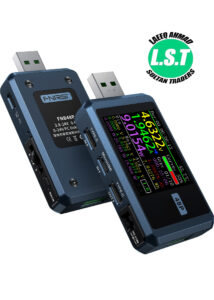

• High-Resolution Display: Equipped with a 1.77-inch full-color TFT LCD, the FNB48P offers a 6-digit display with a resolution of up to 0.00001 (V/A/W), allowing for detailed real-time monitoring of voltage, current, and power fluctuations

  Comprehensive Measurement Capabilities:

  • Voltage Range: 4.5V – 30V

  • Current Range: 0A – 5.1A

  • Power Measurement: 0W – 155W

  • Capacity Measurement: 0–99999mAh

  • Energy Measurement: 0–99999mWh

  • Resistance Measurement: 0–9999Ω

  • Temperature Monitoring: 0°C to 80°C

    Multi-Port Compatibility: Features integrated USB-A, Micro-USB, and Type-C interfaces, facilitating testing across a wide range of devices and cables

    Fast Charging Protocol Detection: Supports detection of various fast-charging protocols, including QC2.0, QC3.0, PD2.0/3.0, SCP, AFC, VOOC, WARP, and Super VOOC 1.0/2.0. It also supports automatic monitoring and MTK PE detection, and can convert QC2.0 to PD2.0 protocols.

    Data Recording and Analysis:

    • Stores up to 10 sets of capacity, power, and time statistics.

    • Records voltage and current curves for up to 9 hours.

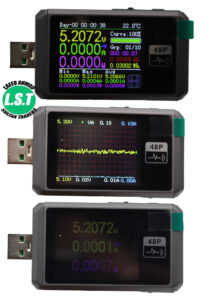

    • Supports low-speed waveform drawing (voltage, current, D+, D−) with sampling rates from 2sps to 100sps, and high-speed ripple drawing (voltage, AC coupling) up to 3.2Msps

      Additional Functionalities:

      • Cable Resistance Measurement: Performs two-step quick measurements of wire resistance using a constant current load.

      • E-Marker and DASH Cable Detection: Reads information from E-Marker chips and DASH cables.

      • Gravity Sensor: Automatically adjusts display orientation with 180° and 360° flipping capabilities.
