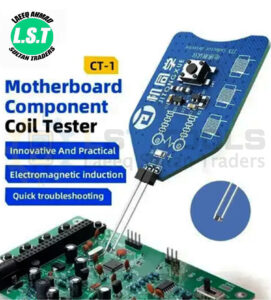

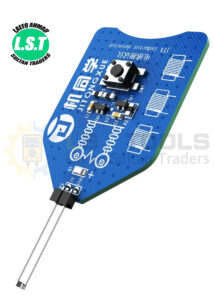

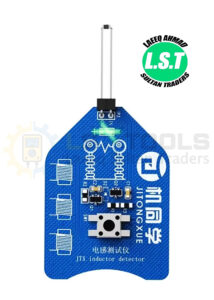

CT-1 JTX Motherboard Component Coil Tester

Name: CT-1 JTX Motherboard Component Coil Tester
Brand: JTX
SKU: JTX CT-1
Price: 1700.00 PKR
Availability: OutOfStock

SKU: JTX CT-1

Based on available product listings and descriptions, here are the specifications for the JTX Coil Tester CT-1. Note that some specifications, such as battery type and detailed testing parameters, may vary depending on the retailer and manufacturing batch

₨1,700.00

Out of stock

Add to compare

Add to wishlist

17 People watching this product now!

Payment Methods:

Description

specifications

Item name: CT-1 Inductance Tester / Coil Tester
Technology: Uses electromagnetic induction to test coils and inductors on circuit boards.
Operating principle: Detects the magnetic field generated by a properly functioning coil when current is running through the board.
Application: Ideal for diagnosing issues on motherboards for mobile phones, laptops, and other electronic devices.

Functional specification

Fault detection: Can quickly pinpoint broken coils, shorted windings, or other inductor faults.
Testing method: Non-contact and non-destructive. The tester does not require direct connection or desoldering of components.
Indicator: A green LED light confirms a coil is functioning normally. No light indicates a fault.
Operation: Simple one-button operation, making it easy for both beginners and experienced technicians to use.

Physical and power specifications

Material: Typically made from a durable artificial board or plastic.
Dimensions: Approximately 7 cm x 3.5 cm, though other listings report different sizes. This confirms its compact and portable design.
Weight: Listings vary, with some mentioning 0.1 kg, confirming a very lightweight design.
Power source: Operates on a button-cell battery, such as a CR2032.

Performance characteristics

High precision and stability: Designed to provide consistent and accurate results.
Fast diagnostics: Identifies faulty components in seconds, saving time compared to traditional multimeter testing.
Efficiency: Can be used on un-powered boards for basic coil checks, but works most effectively on a powered board to detect the magnetic field of active components
