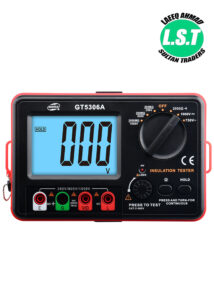

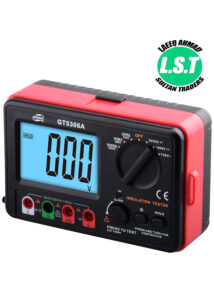

Benetech GT5306A Insulation Tester
-
Multiple insulation test voltage ranges: 250V, 500V, 1000V.
-
Corresponding resistance measurement ranges: 200MΩ to 2000MΩ.
-
Additional range for voltage measurement: 750V~1000V.
₨11,000.00
11
People watching this product now!
Payment Methods:
Description
| Feature | GT5306A Specification |
|---|---|
| Test Voltages | 250V, 500V, 1000V |
| Insulation Resistance Range | Up to 2000 MΩ (varies with test voltage) |
| Voltage Measurement Range | 0 ~ 1000V AC/DC |
| Display | Large backlit LCD with analog bar display |
| Short Circuit Current | Approx. 1.8 mA |
| Resistance Accuracy | ±(3%rdg + 5 dgt) (typical) |
| Voltage Accuracy | ±(2%rdg + 3 dgt) |
| Data Hold | Yes |
| Auto Power Off | Yes |
| Test Lock Function | Yes (for continuous testing) |
| Overload Protection | 1000V AC/DC for V terminals |
| CAT Rating | CAT II 600V |

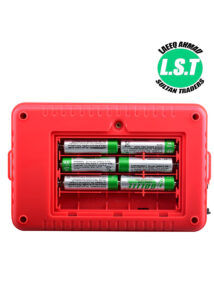

| Power Supply | 6 x 1.5V AA batteries |
| Dimensions | Approx. 172 x 118 x 65 mm |
| Weight | Approx. 500g (including batteries) |
| Standards | CE certified, IEC 61010 |
