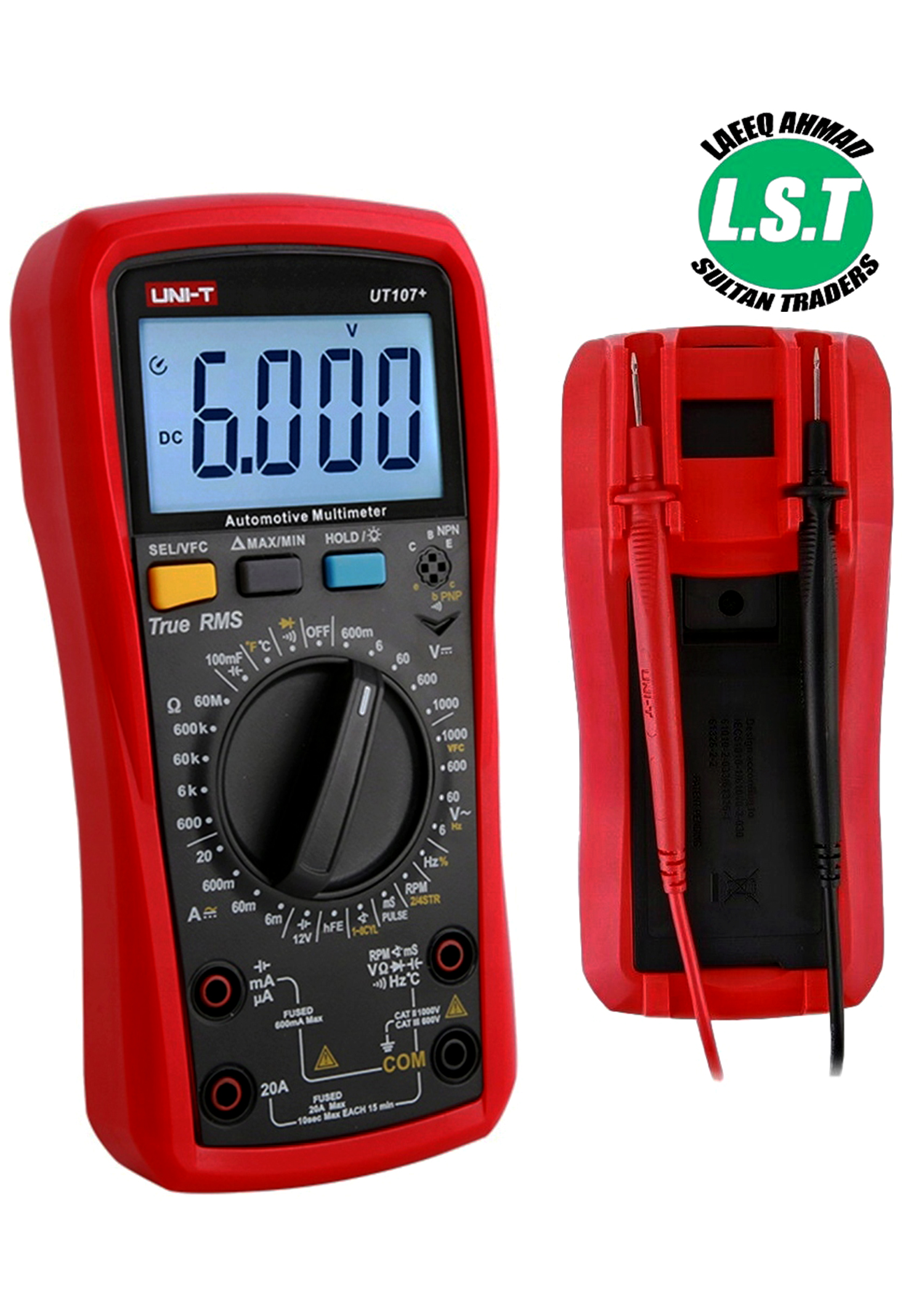

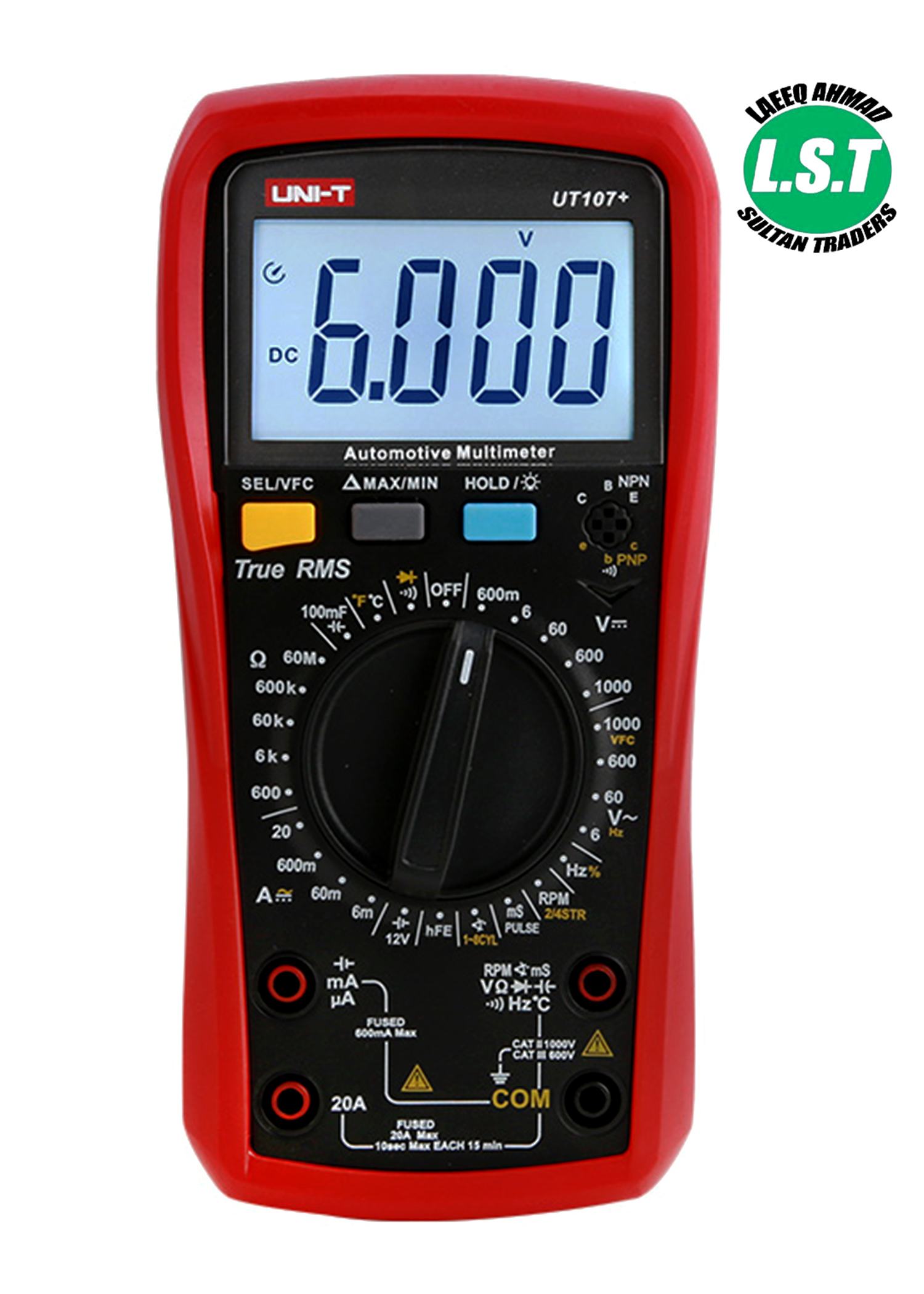

UNI-T UT107+ Automotive Multimeter
The UNI-T UT107+ is a professional automotive digital multimeter designed for vehicle diagnostics and general electrical measurements. Featuring True RMS, a 6000-count backlit display, and functions like RPM, dwell angle, pulse width, and temperature, it’s ideal for mechanics and technicians. With robust input protection, manual range selection, and support for AC/DC voltage, current, resistance, frequency, and more, the UT107+ offers reliable performance in both automotive and electrical environments
₨7,000.00
18
People watching this product now!
Payment Methods:
Description
| Feature | Specification |
|---|---|
| Model | UNI-T UT107+ |
| Display | 6000-count large LCD |
| True RMS | Yes |
| Auto/Manual Range | Manual |
| Backlight | Yes |
| Data Hold | Yes |
| Max/Min Measurement | Yes |
| Low Battery Indication | Yes |
| Input Protection | Fused and overload protected |
| Power Supply | 9V battery (6F22) |
| Dimensions | Approx. 180 × 87 × 47mm |
| Weight | ~370g (with battery) |
⚡ Electrical Measurement Ranges
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 6V/60V/600V/1000V | ±(0.5%+2) |
| AC Voltage | 6V/60V/600V/750V | ±(0.8%+3) |
| DC Current | 60μA/600μA/6mA/60mA/600mA/20A | ±(1.0%+3) |
| AC Current | 60μA/600μA/6mA/60mA/600mA/20A | ±(1.5%+3) |
| Resistance | 600Ω to 60MΩ | ±(0.8%+2) |
| Frequency | Up to 10MHz | ±(0.1%+3) |
| Duty Cycle | 0.1%~99.9% | ±(1.2%+2) |
| Temperature | –40°C to 1000°C | ±(1.0%+3) |
| RPM (Tachometer) | 2/4 stroke RPM measurement | Specified in RPM mode |
| Transistor Test | hFE (NPN/PNP) | Yes |
| Diode/Continuity | Yes | Buzzer sounds below threshold |
🔌 Ports & Protection
| Input Jack | Function | Protection |
|---|---|---|
| COM | Common ground | All functions |
| VΩHz°C | Voltage, Resistance, Frequency, Temp | CAT III 600V |
| μA/mA | Low current | 600mA fuse |
| 20A | High current | 20A fuse (15 min max duration) |
🧰 Special Automotive Features
-
RPM measurement for 2/4 stroke engines
-
Dwell angle test
-
Pulse width measurement
-
Duty cycle
-
Temperature probe (K-type thermocouple supported)
