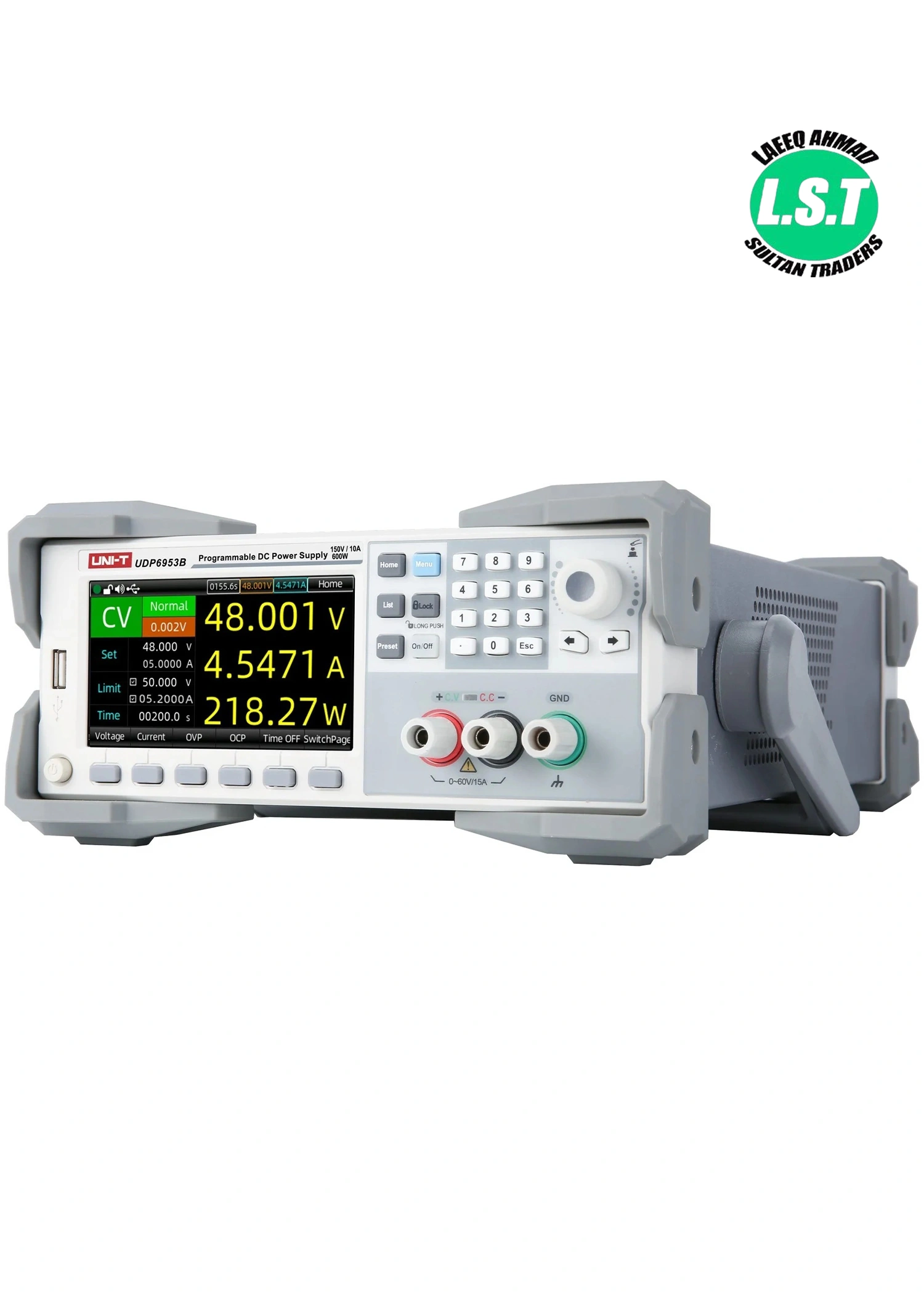

UNI-T UDP6953B 600W Switching DC Power Supply 150V/10A
| DC Switching Type |
1Ch Channels |
| 600W Total Power |
150V Output Voltage |
| 10A Output Current |
1mV/0.1mA Resolution |
₨358,000.00
12
People watching this product now!
Payment Methods:
Description
🔧 Electrical Specifications
| Parameter | Value |
|---|---|
| Output Voltage Range | 0 – 150 V |
| Output Current Range | 0 – 10 A |
| Maximum Output Power | 600 W |
| Voltage Resolution | 1 mV |
| Current Resolution | 0.1 mA |
| Voltage Accuracy | ≤ 0.03% + 20 mV |
| Current Accuracy | ≤ 0.1% + 25 mA |
| Voltage Ripple & Noise | ≤ 50 mVp-p |
| Current Ripple & Noise | ≤ 15 mArms |
📺 Display & Interface
| Feature | Details |
|---|---|
| Display Type | 4.3-inch TFT LCD (color) |
| Display Content | Set/Actual Voltage & Current, Protection Status |

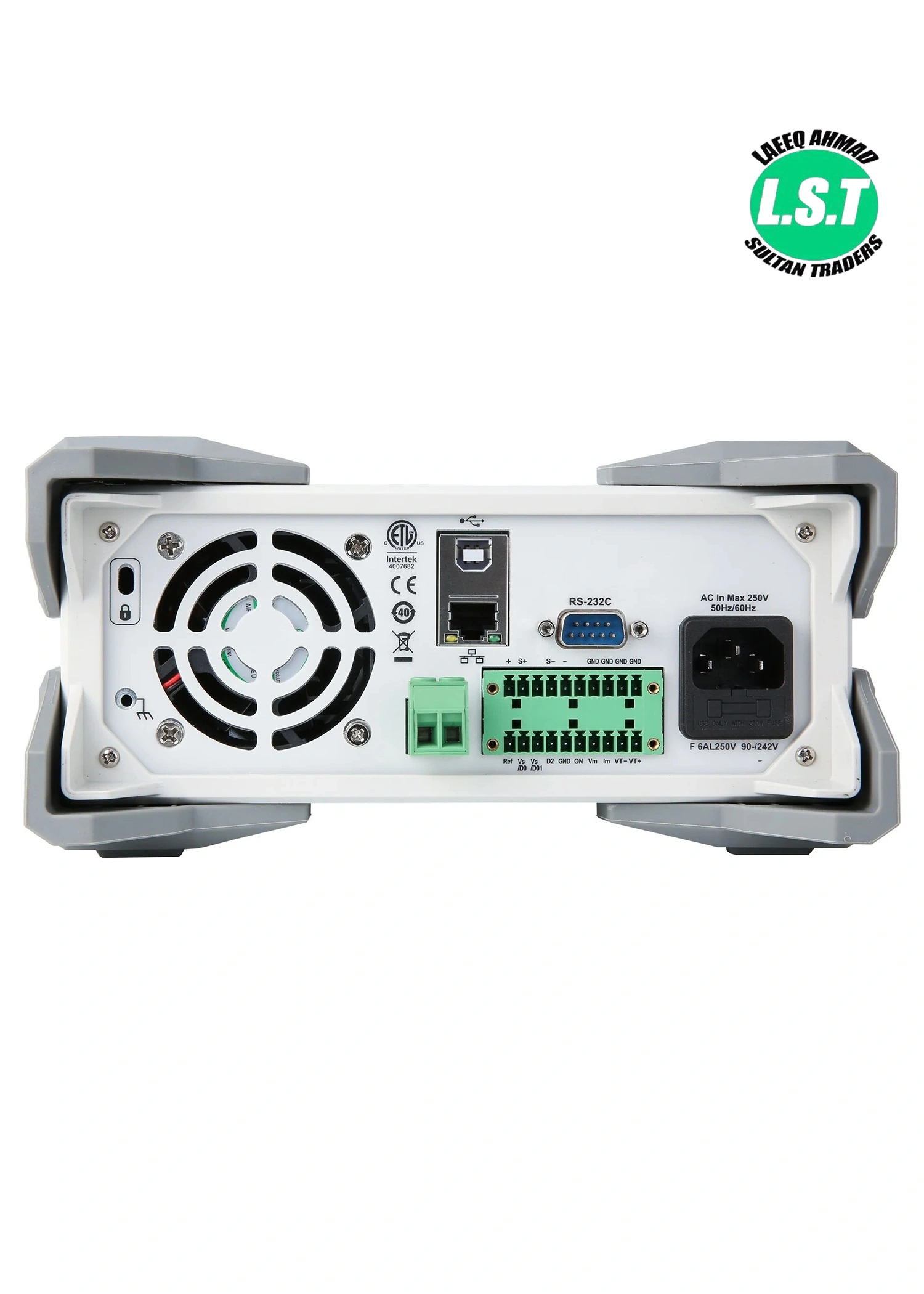

| Remote Interfaces | USB, LAN, RS232, RS485 |
| Communication Protocols | SCPI, Multi-SCPI, Modbus RTU |
🧪 Functions & Features
-
Programmable output (voltage/current profiles)
-
Timing control (0.1 s – 99,999.9 s)
-
Slope setting (for voltage/current rise/fall rates)
-
External voltage/current measurement (4.5-digit voltmeter mode)
-
18 × 8 group memory storage
-
Key lock function
-
Output switch ON/OFF
-
Remote sensing terminals (compensate for cable voltage drops)
-
Over-voltage and over-current protection
-
Analog control input (0-5 V or 0-10 V)
🔌 Input & Mechanical
| Parameter | Value |
|---|---|
| Input Voltage | 100–240 V AC, 47–63 Hz |
| Cooling | Intelligent temperature-controlled fan |
| Operating Temperature | 0 – 40°C |
| Dimensions (W × H × D) | 215 × 88 × 373.7 mm |
| Weight | 4.5 kg |
📦 Included Accessories
-
Power cord
-
USB cable
-
Digital I/O connector
-
Calibration certificate
-
Quick-start guide/user manual
