JTX A9 Curve Waveform Multi-function Measuring Meter

Name: JTX A9 Curve Waveform Multi-function Measuring Meter
Brand: JTX
SKU: JTX-A9
Availability: InStock

SKU: JTX-A9

₨9,000.00

16 People watching this product now!

Payment Methods:

Features and Capabilities

Modern waveform meters, such as the JTX A9, are designed to bridge the gap between a standard multimeter and a basic oscilloscope.

High-Speed Sampling: According to diyfixtool.com, these meters can capture instantaneous dynamic voltage at millisecond levels, which is significantly faster than traditional multimeters.

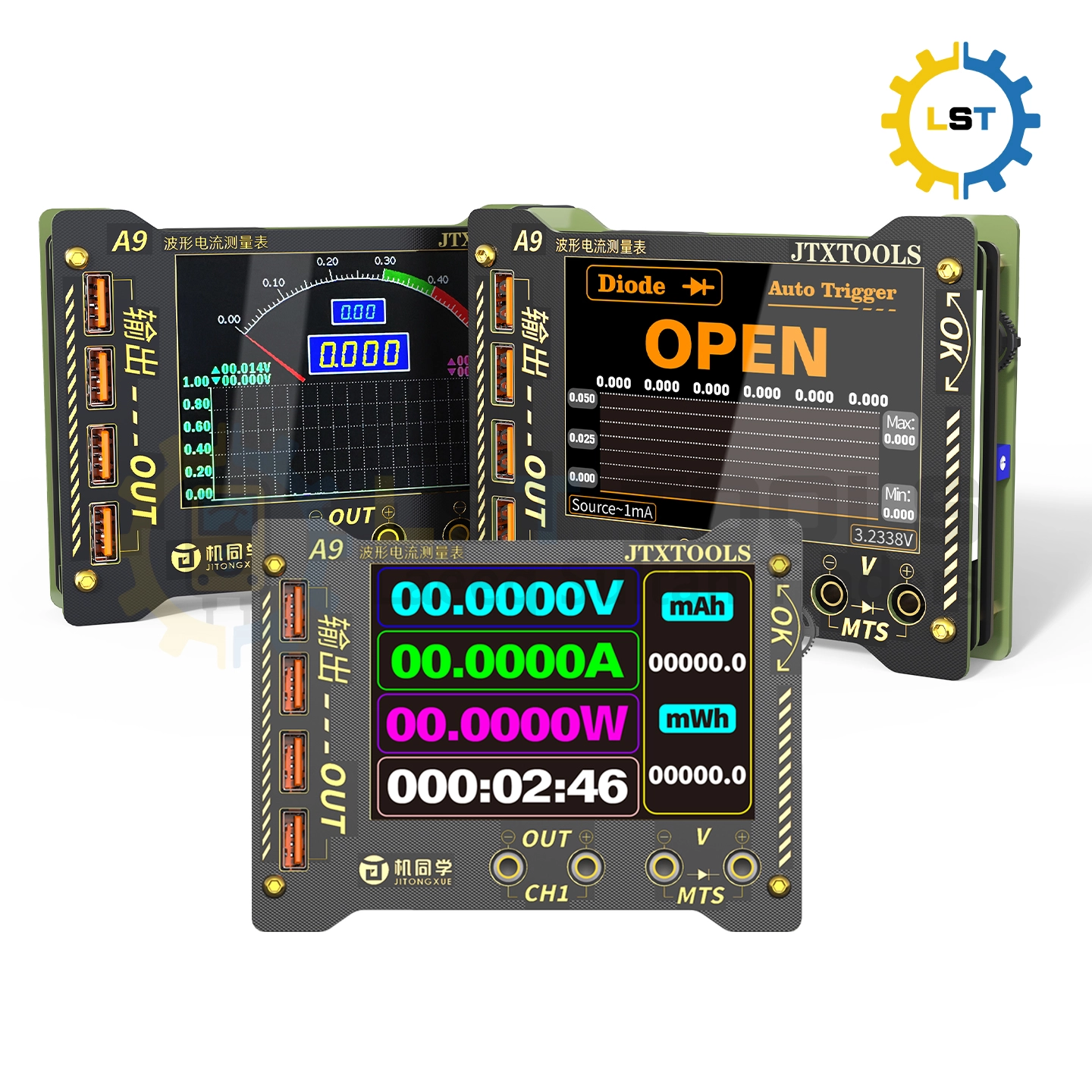

Multiple Display Modes: Most units feature a large high-definition display (often a 4.0-inch IPS screen) that supports digital, pointer, and curve/waveform modes.

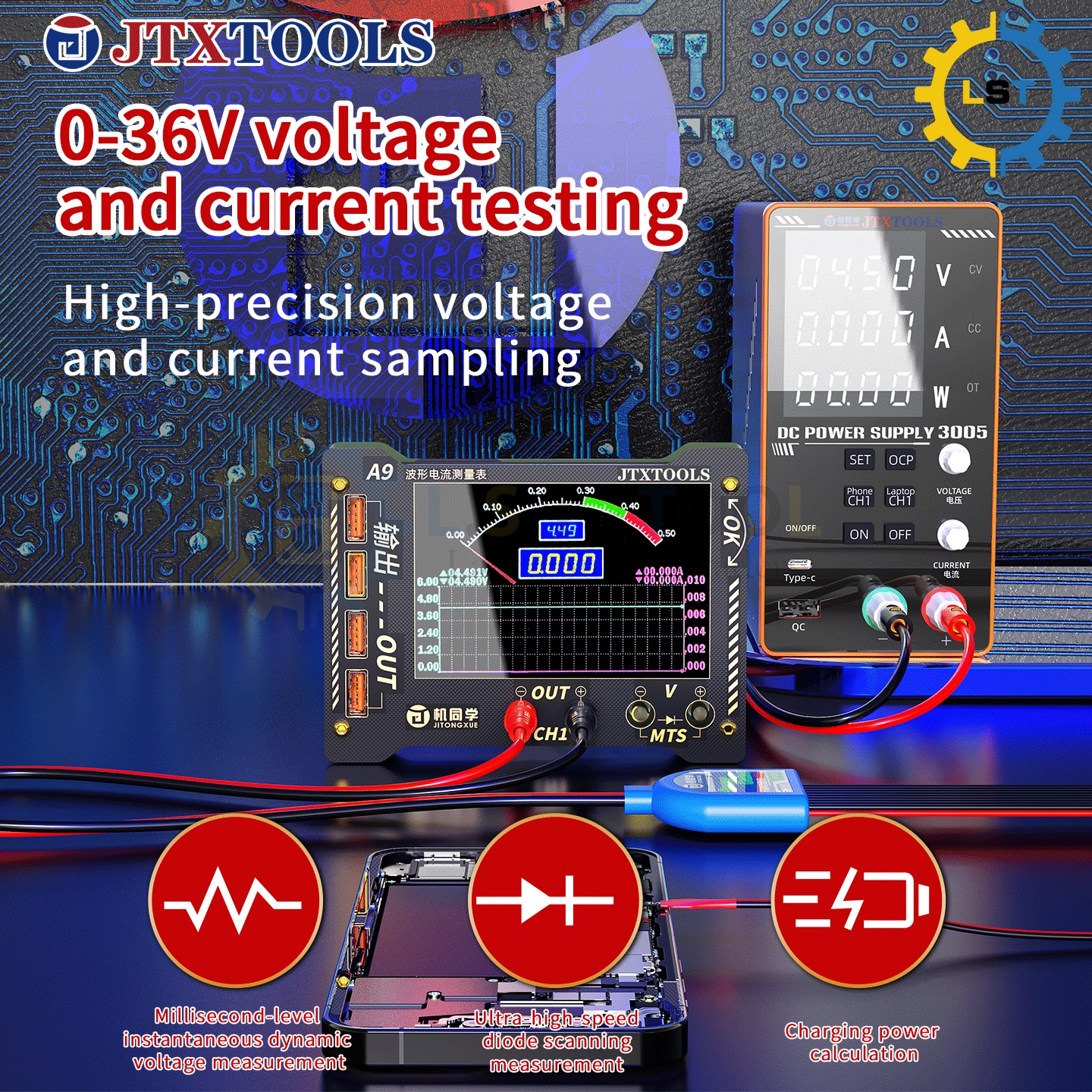

Measurement Range: Typically supports a voltage range of 0–36V, making it ideal for low-voltage electronics like mobile phones and batteries.

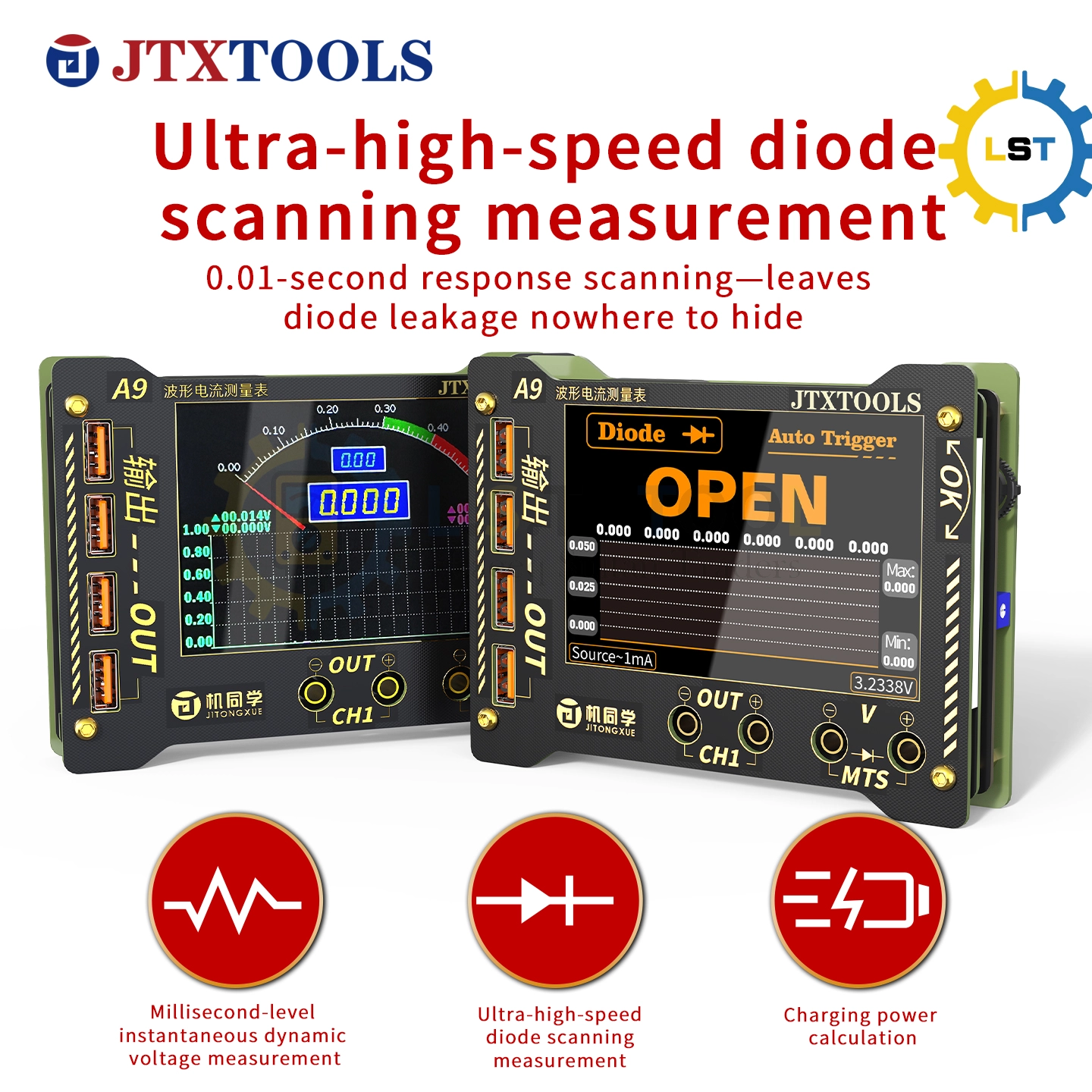

Advanced Diagnostics: Includes specialized functions like ultra-high-speed diode scanning for leakage detection and charging power calculation (voltage, current, and MAH/NWH).

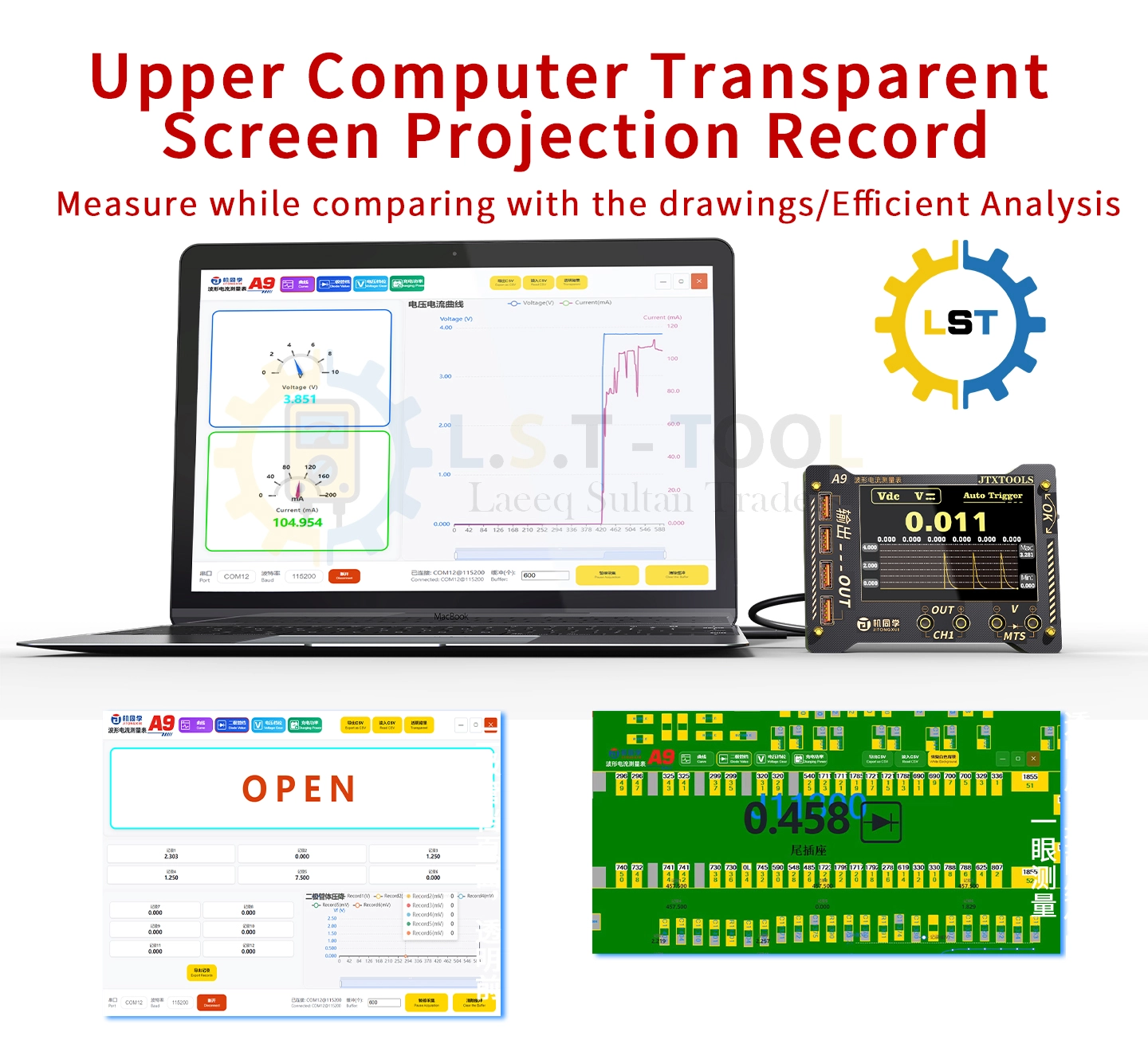

PC Connectivity: Supports “transparent projection” to a host computer, allowing users to view real-time data and waveforms on a larger workstation screen.

Popular Models

While various brands manufacture multifunction meters, the following models are frequently cited for electronics repair:

JTX A9 Curve Waveform Multi-function Measuring Meter: Highly rated for its 4.0-inch IPS display and fast capture speeds.
C09 i2C Waveform Ammeter: A specialized expansion board and ammeter designed for high-power charging tests up to 140W.
TBK D7 Multifunctional Curve Waveform Meter: A hybrid device that integrates measurement functions with an electric soldering iron.
ATV1 Multi-functional Waveform Ammeter: A more compact version focusing on high-precision sampling and digital display curves.

Common Applications

Mobile Phone Repair: Detecting short circuits on motherboards and monitoring battery charging cycles.
Laptop Maintenance: Checking IC performance and dynamic voltage rails.
Industrial Diagnostics: Tracking energy consumption and troubleshooting complex electrical installations.
