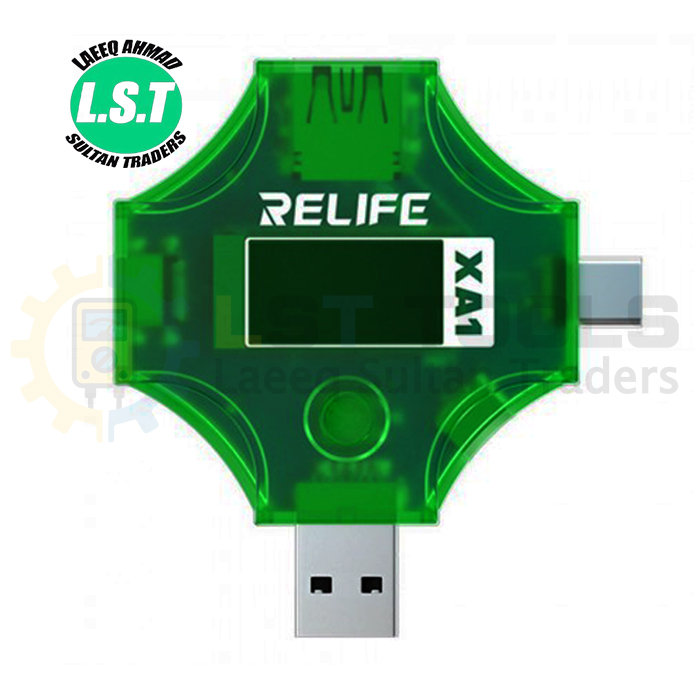

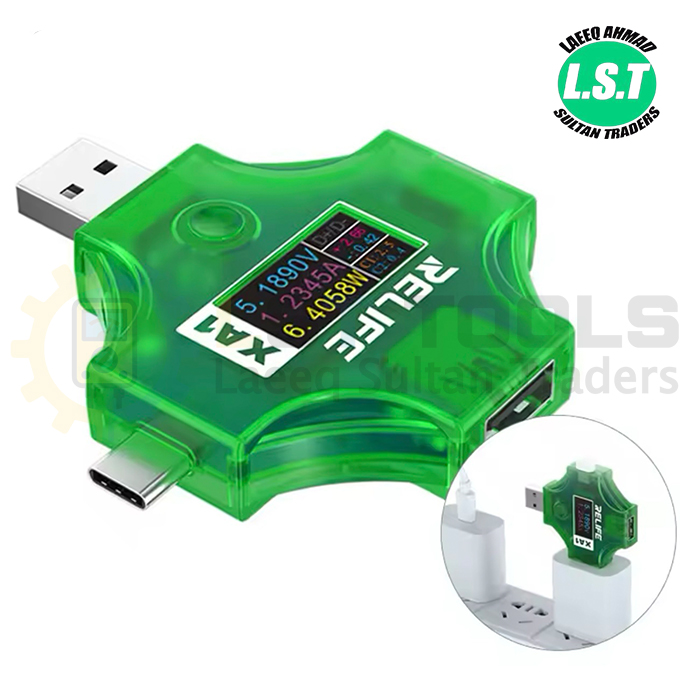

Relife XA1 2 in 1 USB Type-C PD Digital Voltage Tester Vurrent Meter Current Voltage Meter

Features:

• Relife XA1 Current and voltage multifunctional tester Current and voltage multifunctional tester, bidirectional current detection, protocol automatic identification and detection.
• Supports common fast charging protocols currently on the market,and supports PD, QC2.0, QC3.0, SCP, AP2.4A, and DCP fast charging identification detection.
• Automatic identification and detection, covers automatic identification and detection of commonly used fast-charging protocols on the market, supports PD, QC2.0, QC3.0, SCP, AP2.4A, and DCP fast charging identification and detection through commonly used fast-charging protocols on the market.
• Using a special measurement chip, both forward and reverse currents can be sampled and measured and can be plugged in reversely, the C port can be plugged into a charger or a mobile phone.
• Supports one-click flipping of the display interface, and the interface direction can be switched at will, making it easy to cope with various positive and negative connection scenarios.
• Turn off the screen with a button, the screen display can be turned off to avoid light pollution when used at high.
• Easily test current, voltage, fast charge identification, and other parameters of various chargers, data cables, power banks, notebooks, mobile phones, Type-C digital devices, etc., display multiple parameters on the screen.
• HD color screen display, real-time detection of charging voltage/current function and other parameter information.

Specification:
Brand: RELIFE
Product name: Current and voltage multifunction tester.
Model: XA1
Net weight: ≈20.5g
Product Size: 67*62*12mm
Package Size: 60*80*15mm
Current: 5A
Voltage range: 4V~25V
Voltage resolution: 0.01V
Current resolution: 0.01A
Power statistics: Support Wh/Ah
Capacity measurement range: 0~9999Ah
Voltage accuracy: 1%
Current accuracy: 1%
Display: 160*80DPI; IPS screen.
Energy measurement range: 0~9999Wh
Support detection protocol: PD; QC2.0; QC3.0; SCP; AP2.4A; DCP.
